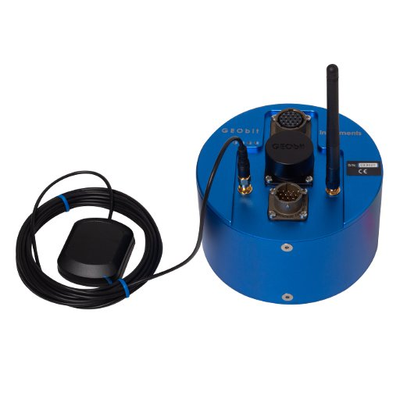

Geobit - Model GEOthree Series -Low Power Digitizer/Recorder
GEObit introduces GEOthree series high resolution 3+1 analog seismic channels telemetry digitizer/recorder. The size of the instrument is only 168 X 106 X 68mm. The power consumption is only 0.9W for 3 channels. Available sampling rate is 100 to 1000sps and optional lower sampling rates are supported. Built-in GPS receiver combined with ultra-accurate DPLL unit providing time drift 10e-9 sec ensures timing stability even in the absence of GPS signal. NTP timing is also available.
The unit operates in continuous mode, triggered mode or both and data are streamed through different data ports. Local data storage is selectable as well as logfile information. The unit supports advanced functionality, implemented from the combination of trusted open-source software components. Because of its open-source architecture, it is able to run any custom application thus providing a next day solution to the user. The hardware is based on an embedded ARM9 400MHz ARM Linux board. The data are stored in mini-SEED format into the microSD card or to a removable USB stick. The instrument supports 10/100 ethernet port and debug port. FTP, SFTP, SSH are also available. The state of health is transmitted over UDP packets upon request.
The unit operates in continuous mode, triggered mode or both and data are streamed through different data ports. Local data storage is selectable as well as logfile information. The unit supports advanced functionality, implemented from the combination of trusted open-source software components. Because of its open-source architecture, it is able to run any custom application thus providing a next day solution to the user. The hardware is based on an embedded ARM9 400MHz ARM Linux board. The data are stored in mini-SEED format into the microSD card or to a removable USB stick. The instrument supports 10/100 ethernet port and debug port. FTP, SFTP, SSH are also available. The state of health is transmitted over UDP packets upon request.
- High resolution digitizer
- Four extra analog inputs
- Four TTL command lines
- Low power consumption
- Dimensions 168x106x68mm
- GPS time / Precision DPLL
- 1-4000 samples per second
- 3+1 seismic channels
- Ultra low noise preamplifier
- Embedded Open Source OS
- Embedded SeedLink Server
- Embedded Earthworm Serve
- Continuous/Trigger recording
- Advanced functionality
- Smart Network Operation
