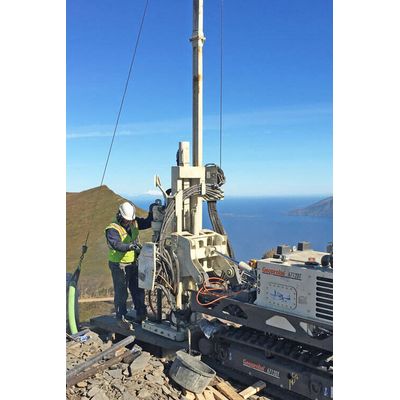

Geoprobe - Model 6712DT -Direct Push Drill Rig
Drillers seeking a lightweight, small drilling rig choose the 6712DT for their small to medium direct push projects. Designed in three components, the small drilling rig can be air lifted to remote mountain tops or into cavernous structures. Despite being a small drilling rig, the 6712DT packs the power to do shallow augering, increasing the amount of drilling operations completed in-house. Companies depend on the 6712DT to:
- Complete multiple functions with a single rig, reducing dependency on other drillers
- Provide small footprint and modular design, mobilizing into tight spaces or remote locations
- Leverage simple, straight-forward operations, increasing productivity
Owners appreciate their ability to reduce rescheduling jobs thanks to the multi-functional small drilling rig. Taking your business to the next level is easier with the 6712DT small drilling rig.
Owners expanding their drilling capabilities choose the 6712DT small drilling rig to increase depths of both augering and direct push.
The latest Tier 4 6712DT features a host of enhancements:
- additional power
- additional electronic controls, like the throttle rocker switch, for easier operation and tracking
- additional engine monitoring now displayed on screen eases operation and increases safety
Reducing rig limitations with the 6712DT keeps drillers booked out consistently while an array of features and options tailors the small drilling rig to their needs, including:
- Modular machine design can be assembled and disassembled in three parts (pick weight under 2,000 lb per component)
- Drill mast with 36,000-lbf push, 48,000-lbf pull, and optional sideshift
- Simple hydraulic design
- Heavy-duty track drive system
- GH63 Hammer w/ single speed Bi-directional rotation, modular percussion power cell technology
- Simple control panel design, manual controls provide tactile feel
- Optional GA2500 two-speed rotary head (2,500 ft/lb, up to 150 rpm)
- Optional mast & winch system (2,500-lbf winch)
- Rear blade assembly for tooling transport and machine stabilization
- Better access to key components for serviceability and maintenance
- Wireless (optional feature) and tethered remote drive
With drill rig service shops in North Carolina, Pennsylvania, Florida, and Kansas, you’ll have service support nearby for your routine maintenance or more in-depth remounting and refurbishment work. Our service technicians are backed by our team of engineers to ensure solutions not bandaids to issues. And our production processes mean your small drilling rig is constructed consistently and tested thoroughly to ensure easier service support.
