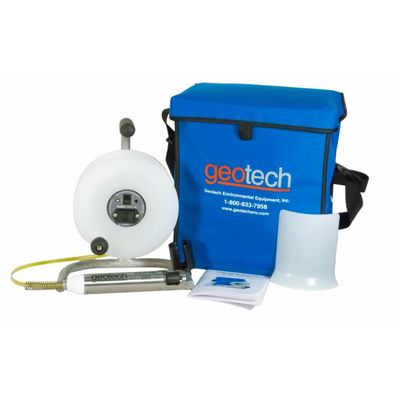

Geotech - Portable Water Interface Probe With Float
The Geotech Interface Probe With Float is a portable, reel-mounted instrument that provides measurements of liquids lighter and heavier than water. When the probe is lowered down a well and contacts the product layer, a solid tone and red light alarm is activated at the reel. When the probe detects water, the tone begins to oscillate and the light changes to green.
Most popular related searches
- Extremely durable polypropylene storage reel with rugged aluminum frame
- HDPE coated steel-core dog bone shaped tape
- Highly visable printed markings in engineering or metric units
- PTFE and stainless steel probe with spring strain relief
- Audible and visible alarms activated on reel when probe contacts product and water
- Auto shut-off circuit to extend battery life
- Easily replaced 9 volt battery
- Water resistant padded carrying case to protect instrument
- Built in reel hanger and included Leader Guard for longer tape life.
Size:
- Reel: 13" H x 11" W x 7" D (33 cm H x 30 cm W x 18 cm D)
- Probe: 1.5" O.D. x 8.9" L (3.8 cm O.D. x 22 cm L)
- Length/Weight:
- 100 foot (30 meters) = 9 lbs. (4 kg)
- 200 foot (60 meters) = 11 lbs. (5 kg)
- 300 foot (100 meters) = 14 lbs. (6 kg)
- Accuracy:
- 1/100 of a foot per 100 feet (3mm/30.5 meters)
- Per Federal Specification GGG-T-106E
- Material:
- Reel: Polypropylene and aluminum
- Tape: HDPE coated steel-core tape
- Probe: PTFE, Viton® and stainless steel
- Resolution: Imperial units 1/100 per foot, metric units 1mm
- Power: 9 Volt DC alkaline battery
- Alarm: Audible and Visual
- Warranty: 1 year
