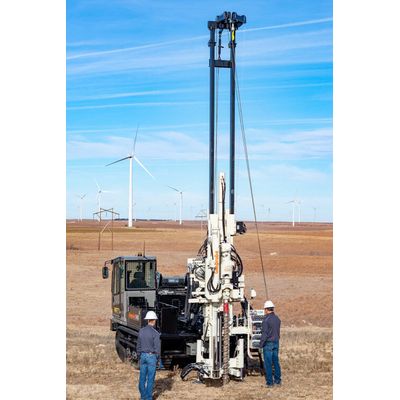

Geoprobe - Model 3145GT -Geotechnical Drill Rig
Drillers seeking to quickly traverse long stretches of tough terrain encountered on pipe line, power line or wind farm projects choose the NEW 3145GT geotechnical drill rig, combining the efficiency and simplicity of 31 series drill mast with speed and comfort of crawler carrier.
- Power and versatility: effectively compete in multiple revenue streams – HSA, SPT, CPT, DPT, rock coring, mud rotary, air rotary, and drive and wash
- Centerline head side shift: aligns all head functions and winches over the bore hole without moving the drill mast for efficient drilling.
- Simple controls with hands-free rotation, head feed, and auto drop hammer: makes work nearly effortless and creates a gentle learning curve for the seasoned driller as well as the new hire
- Crawler carrier: results in an agile drill rig capable of traveling from hole-to-hole at a top speed of 6 mph
- Enclosed operator cabin: offers creature comforts of heat, AC, and radio
Enhancements on the 3145GT include:
- Enhanced off-road capability: easily run on rugged off-road terrain with crawler chassis
- Increased tool storage: simplify housekeeping especially on long treks
- Taller standard winch: effectively pull 20-foot tool string with attached split spoon above the breakout
Options include:
- high torque 6-speed rotary head
- third winch
- pivoting winch mast for lower transport height
With drill rig service shops in North Carolina, Pennsylvania, Florida, and Kansas, you’ll have service support nearby for your routine maintenance or more in-depth drill rig remounting and refurbishment work. Our service technicians are backed by our team of engineers to ensure solutions not bandaids to issues. And our production processes mean your geotechnical drill is constructed consistently and tested thoroughly to ensure easier service support.
