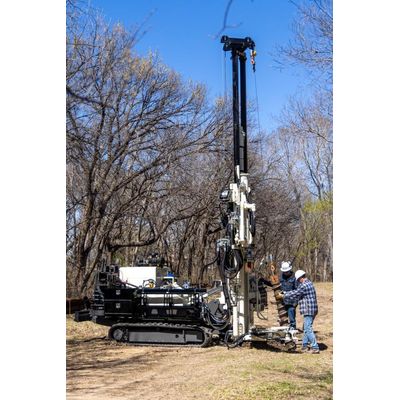

Geoprobe - Model 3135GT -Geotechnical Drill Rig
Drillers chose the 3135GT geotechnical drill for difficult subsurface formations that require more rotary torque and rotary speed while maintaining a compact carrier. Engineered with geotechnical drilling in mind, drillers find its compact size, features, and power also suited to environmental, exploration, and construction projects. The 3135GT includes all you`ve come to appreciate in a Geoprobe® 31 series geotechnical drill rig — like centerline head side shift — but more.
- MORE rotary power: 10,000 ft lbs of torque
- MORE rotary speed: 1,000 RPM
NEW 3135GT RIG:
- Harness power of 134HP Cat C3.6 engine for 10,000 ft lbs of torque and 1,000 RPM
- Compact track footprint with rear blade capable of carrying 3,000-lb load
- Simple intuitive controls satisfy veteran drillers and simplify training new drillers
Designed with simplicity and safety mind, the Geoprobe® 3135GT geotechnical drill makes Fieldwork SimplifiedTM for both new and veteran drillers. Drilling with the 3135GT is faster, easier, safter.
FASTER: 134HP Cat C3.6 engine powers dual hydraulic pumps:
Primary pump supplies hydraulic pressure and flow for all drilling functions including:
- GR10.1 6-speed rotary head (10,000 ft-lb torque, 1,000 RPM)
- GH64 percussion hammer
- 36,000 lb. crowd force/48,000 lb. pull back
- Winch options
- Auto Drop Hammer
Secondary supplies hydraulic pressure and flow for fluid pump:
Options include:
- Moyno 3L6 or 3L8
- Triplex
- SPX Hose Pump
EASIER: Mobilize a single rig, without manipulating mast or machine position to complete:
- Augering
- Mud Rotary
- SPT
- Shelby tubes
- Hard rock cores
- CPT
- Direct push
SAFER: Reduce operator strain and keep driller out of danger zone using:
- Hands-free automatic drop hammer
- Hands-free rotation and head feed
With drill rig service shops in North Carolina, Pennsylvania, Florida, and Kansas, you’ll have service support nearby for your routine maintenance or more in-depth drill rig remounting and refurbishment work. Our service technicians are backed by our team of engineers to ensure solutions not bandaids to issues. And our production processes mean your geotechnical drill is constructed consistently and tested thoroughly to ensure easier service support.
