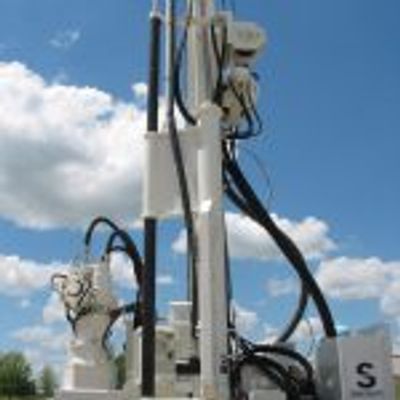

Simco - Model 2800 HS (HT) -Geotechnical Drilling / Environmental Drilling Ring
Backed by over 50 years of experience makes this rig the easy choice. If you ask our customers they will tell you that the SIMCO 2800 HS (HT) is the best drill in its class on the market today. The SIMCO 2800 HS (HT) is a compact ruggedly built easy to maintain, all hydraulic, top head drive drill rig. The SIMCO 2800 HS (HT) is ideal for environmental drilling and geotechnical drilling. With SIMCO you are not just buying a drill rig you are getting unmatched service and support that you won’t find anywhere else. The SIMCO 2800 HS (HT) is backed by the best warranty in the environmental drilling and the geotechnical drilling industry. With multiple mud/water pump options available this truly does make this the most versatile drilling rig on the market. (Capabilities subject to drilling conditions, mud pump size and auxiliary compressor size).
- Wet Rotary 0-400 ft with 9” borehole
- Air Rotary (Down-the-Hole Hammer) 0-400 ft 9” borehole
- Conventional Flight Augers 0-300 ft 12” borehole
- Hollow Stem Augers 0-100 ft 6 ¼ ID or 0 – 150 ft using 3 ¼ - 4 ¼ ID
- Core Drilling 300 ft NQ Drill Rod / 500 ft AQ Drill Rod
- Drillhead Torque: 6,800 ft lbs. max. 4-Speed
- Drillhead RPM: Deck Engine 0-720 RPM - PTO Drill 0-750 RPM
- Pullback: 12,000 lbs
- Push Down: 12,000 lbs
- Main Winch: 4500 lbs
- Auxiliary Winch: 2550 lbs
- Drillhead Travel - Net Stroke: 11’
- Optional Wireline Winch: 1300 lbs
