Gessner - Hydraulic Deep Ripper (HDR)
Maximise your yield potential with Australia`s deepest ripper, the Hydraulic Deep Ripper (HDR). Hydraulic controlled shanks with the strength and flexibility to deep rip to a depth of 700mm. Maximise your yield potential with Australia’s most efficient deep ripper, the Hydraulic Deep Ripper (HDR). For farmers wanting the convenience of hydraulic controlled shanks, the new Gessner Hydraulic Deep Ripper (HDR) has the flexibility of ripping beyond the standard 300-500mm, to a depth of 700mm.
With clever engineering, quality RHS steel with fully welded clamps and bolted frame sections, Gessner’s deep rippers are built to last for decades.
Our deep rippers use well designed parabolic tines to break up compacted soil layers with ease, allowing plant roots to grow faster and deeper by increasing access to moisture and nutrients, resulting in improved crop yield.
Deep rippers require inherent build quality and the HDR was designed and fabricated to outperform and outlast in even the toughest Australian conditions. The innovation in engineering and unrivalled quality, strength and durability makes Gessner the trusted name in agricultural equipment.
- Capable of ripping to a depth of 700mm

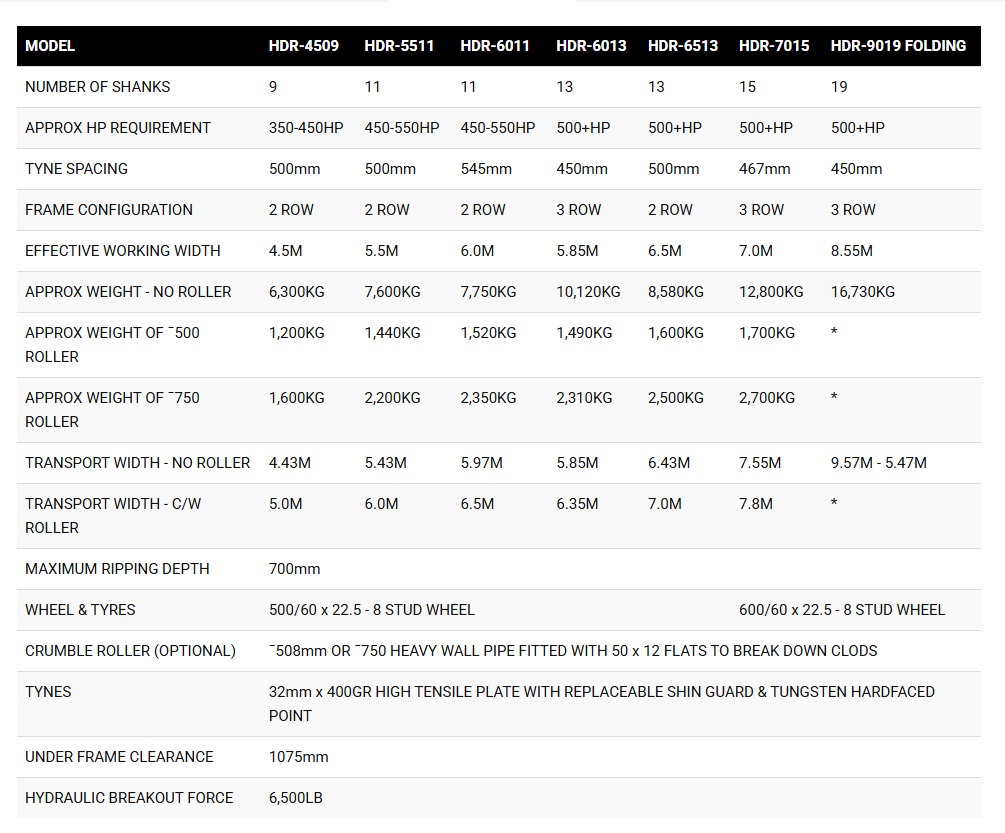

- The standard HDR range is available in 9, 11 and 13 shank configurations covering working widths of 4.5m to 6.5m
- Custom designed models available up to 12m wide with shank spacings of 450mm to 1000mm
- Engineered, designed, tested and fabricated to the highest quality with Australian-made mild steel and Japanese high tensile steel.
- Frames are manufactured from 200mm x 200mm x 12mm RHS.
- Heavy dual toolbar spaced at 2100mm for extra stability.
- Fitted with 500/60 x 22.5 flotation wheels with 8 stud configuration.
- Shanks manufactured from the highest quality 32mm wide high tensile steel.
- Fitted with parabolic style 32mm wide high tensile steel shanks to ensure highest quality and enable the most efficient depth to tractor horsepower ratio.
- Shanks have 1075mm under frame clearance.
- All shanks are designed with replaceable points and shinguards to ensure quick and efficient change-out.
- 6500lb hydraulic release shank assemblies
- Hydraulic controlled crumble roller in 600mm or 750mm diameter
- 100mm wide hard wearing delving plates
- Inclusion plates
