Gester International Co., Ltd.

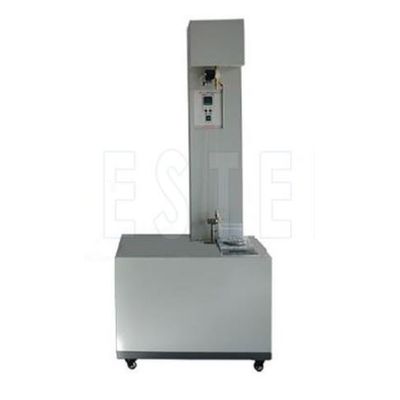

Gester - Model GT-RB03 -Catheter Flow Meter
Application: Catheter Flow Meter is used to measure the flow rate of water flowing through the conduit under constant static head, it can also be used to measure the flow rate of water flowing through the conduit with other rigid or semi-rigid fibers as tubular materials.
Most popular related searches
constant temperature water bath
flow meter
protective mask testing system
deionized water
water distillation
protective mask testing
protective mask test
constant temperature bath
water deionizer
bathing water
Standards:
- YY 0285.1 -2017 Intravascular catheters- Sterile and single-use catheters- Part 1: General requirements;
- YY 0325-2016 Sterile urethral catheter for single use;
- GB/T 15812.1-2005 Catheters other than intravascular catheters- Part 1: Test methods for common properties;
- With closed cycle constant temperature water bath
- Equipped with a high-precision sensor to measure the quality of catheter effluent, the accuracy is ± 1%
- The working temperature of the instrument must be (20 ± 2) *C
- Computer control, full Chinese interface, high degree of automation
- The data is processed by the computer, equipped with a printer interface, and the test data can be displayed directly.
- Reagent: distilled water or deionized water
- The water bath temperature is constant at 22 8C ± 2 8C
- The constant liquid level container provides a liquid flow rate of 525ml_ / min ± 25ml_ / min and a static pressure head with a height of 1000mm ± 5mm: 9. Liquid outflow lime: 30s
- Sensor range: 0 - 500g, measurement accuracy: ± 1%
- Power supply: 220V, 50Hz.
