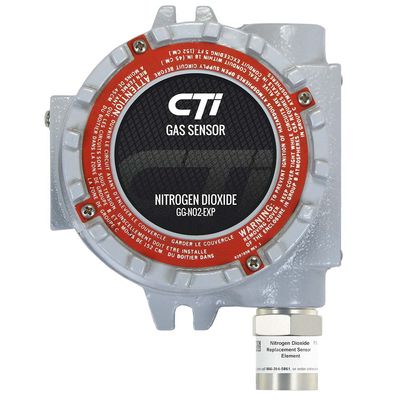

CTI - GG-EXP Gas Detector Explosion Proof

Size: 6.75″ H x 5.25″ W x 4.5″ D

Enclosure: Copper-free aluminum body, epoxy powder coat finish, neoprene gasket, for hazardous areas

Weight: 3.75 lbs

Wiring Connection: 3-conductor, shielded, stranded, 20 awg cable (Belden 8772 or equivalent) up to 1500 ft

Terminal Block Plug (field wiring): 26-12 AWG, torque 4.5 lbs-in

Output Signal: 4-20 mA linear output

Input Power: +24vdc

Detection Method: Diffusion

Linearity: +/- 0.5% full scale

Repeatability: +/- 1% full scale

Operating Humidity: 5-100% condensing

Ingress Protection: NEMA 4X / EEMAC 9EFG

Sensor Head Certification: ATEX Certificate CESI 01 ATEX 066 U (catalytic bead sensor technology only)

Enclosure Certification: NEC/CEC:

Class I, Division 1 & 2, Groups B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

UL Standard: 1203

CSA Standard: C22.2 No. 30

FM Classification No.: 3615

ATEX Certificate KEMA 02 ATEX 2265U

IEC Standards EN: 60079-0, EN:60079-1, EN:60529

Warranty: 2 years sensing element and transmitter

Industry standard linear 4/20 mA output

Explosion Proof Enclosure for classified areas

Target Gas Specific sensor element technology; prevents false alarms

Circuit board and components potted to completely prevent corrosion

Transmitters are configured for a variety of target gases and ranges
