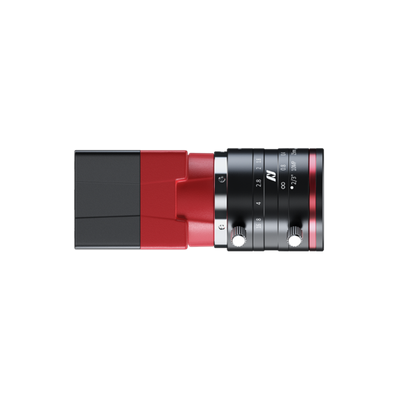

Allied Vision - Model Alvium G1 -GigE Vision Camera
The Alvium G1 is the first GigE Vision camera to be powered by Allied Vision's proprietary ALVIUM Technology, integrating the well-established GigE Vision standard with the adaptability of the Alvium platform. This camera features an extraordinarily compact design, measuring 41 mm × 29 mm × 29 mm, and is equipped with industrial-grade hardware for seamless integration into various vision systems. It offers versatile sensor options, including CMOS sensors from ON Semi and Sony, catering to diverse imaging requirements. Designed for robust operation, the Alvium G1 operates efficiently within a wide temperature range from -20°C to 65°C, thanks to an advanced thermal management system. Furthermore, its future-proof design ensures long-term availability. Users can enhance their systems by upgrading to the Alvium G5 when necessary, providing scalability for performance needs. The associated Vimba X SDK simplifies integration across multiple operating systems, offering comprehensive support for complex vision applications.Alvium G1 is the first GigE Vision camera powered by ALVIUM® Technology, Allied Vision's ASIC chip. It combines the advantages of the established GigE Vision standard with the flexibility of the Alvium platform. In addition to a comprehensive feature set and a broad sensor selection, it offers great versatility. With its very compact housing and industrial standard hardware, it can easily be integrated into any vision system while ensuring long-term availability and reliability.
Alvium G1 is a small and feature-rich GigE Vision camera. Benefit from the highest image quality in a future-proof package!
-
Reliability: Established GigE Vision standard
-
Future-proof design: Based on latest technology standards ensuring long-term availability
-
Extraordinarily small size: 41 mm × 29 mm × 29 mm (Closed Housing)
-
Various sensors: Select between CMOS sensors from ON Semi and Sony
-
Industrial-grade hardware: With its compact housing and industrial standard hardware, it can easily be integrated into any vision system.
-
Easy upgrade: If your application ever needs a performance boost, you can simply upgrade it with an Alvium G5 camera.
- Resolution: up to 24.6 megapixels
- Sensor: CMOS global and rolling shutter sensors from Sony and ON Semi
- Frame rates: up to 276 frames per second
- Housing options: Closed Housing
- Lens mount options: C-Mount, CS-Mount, or S-Mount (M12)
- Image colors: Monochrome and color (UV, NIR & SWIR coming soon)
- Operating temperature: -20°C to +65°C
