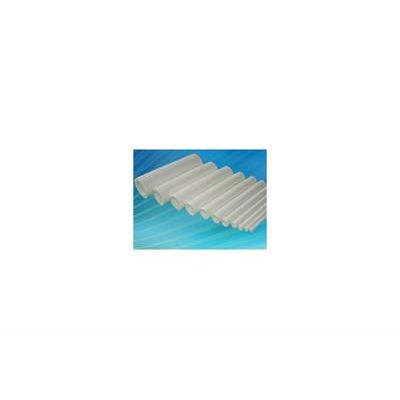

Ginde - Model PPR - Pipe
From Water Supply
Feature of ginde PP-R production: Healthful, innocuous: the production belongs to green manufacture of building materials, it can be used the piping system of pure water and drinking water. Anticorrosion, anti-encumbrance: using the piping can avoid the rustlings of laver and bathtub which was given rise to by piping rust eaten and it also can avoid the clogging which induce by piping rust eaten. High temperature and pressure resistant: the water temperature that transport by the piping can reach 95℃ when working under the long term consecutive working stress. Heat preservation and energy saving: coefficient of heat passage of the piping just as metallic conduit and the heat preservation and energy saving efficiency is very good when used as hot water line. Lightweight: the piping specific gravity of the piping just as one of seven as metallic conduit.
(6)Beautiful shape: the inside and outside of the production is very lubricous, fluid resistance is little, color and luster is very meekness and it has attractive appearance.
(7)The fitting of the piping is very convenient and credible: adopting hot melts joint, only needs a few ministers and very on the safe side.
(8)The working life of piping is very long: its working life can reach at least 50 years under
2) Ginde PP-R piping fitting
Ginde PP-R piping fitting that match with tubing product is designed by the company professional designer, its appearance references foreign well-know brand and combines Chinese culture feature, it is compact and decorous. Ginde PP-R piping fitting collocate pipe cover of gaining patent and have ornament with adding tendon. Pipe cover escapes the infection of appearance beauty witch is caused by the things that melting out when heat sealing. Adding tendon is for the sake of references that whether verticality or not in the installation process, at the same time for the sake of intensifying the intension of pipe fittings, and it not only can make the appearance more beautiful, but also can make up the simplex and ragged disadvantage of ordinary PP-R pipe fittings.
3) The field of application of the production
(1)Pipeline system of residential hot or cold water
(2)Transportation and discharge of water for industrial use or chemical species
(3)Pipe of pure water or drinking water
(4)Procreative and conveying system of soft drink and mediation
(5)Pipe for pressure air
(6)Other pipes for industry agriculture
2.Raw and processed materials
Material of excel performance is one of the qualification which produce topping piping. Ginde Company general adopts the RA130E PP-R chemically raw material from Finland and north Europe in the production of PP-R tubing product and pipe fittings. The material is recognized as the top raw material by the professional in this vocation. The preferable performance of this material and its stability establish the high quality station of Ginde PP-R tubing product and pipe fittings on the market.
1) Production facility of Ginde PP-R tubing product Ginde Company outfit and introduce into advanced Germanic Battfeld Company PP-R product line, this produce line get across the omni directional PLC control, and make the speed of extrude, draught and cooling bring into genuine step in production process.
2) Production facility of Ginde PP-R pipe fitting
Ginde PP-R pipe fitting adopt traditional injection mold techniques, production facility entirely introduce into from Hong Kong Zhenxiong Company, high-powered production facility is the precondition guarantee of produce high quality production.
5. Production technical specifications
1) PP-R tubing product technical specifications
ⅰ.Color and luster of tubing product should be substantial agreement , and absence of glare.
ⅱ.The inside and outside superficies should be lubricous, horizontal, no dishing, no air bubble, and no others surface defect which can affect its performance. The tubing product should not have any visible impurity.
ⅲ. End surface of the tubing product should be cut horizontally and vertical to the axes
ⅰ. The general length of the tubing product is 4m or 6m, and it also can be decided through the two parties' negotiation. The length of the tubing product is not allowed minus deviation.
ⅱ. The physical mechanics and the chemical behaviors of the tubing product should measure up to with the provision of the table two.
3. In order to ensure the safe of work pressure, take the practical work pressure, used environment, used function and so on into account. All the parameter is calculated carefullu and tested reduplicate.
4. The inner rubber pipe of stainless steel corrugation pipe, it is made by advance techniques and scientific driection, which make the pipe compression-resistant, wearable, anti-static, flexibility and so on.
5. The stainless steel wire is out layer of stainless steel corrugation pipe. The out layer coule reduce distortion of inner rubber pipe when it is heated and pressend at the same time. It also avoids the leaking and crack.
Stainless steel corrugation pipe is used in office building, hotel, hospital, factory, mine and connection of bathroom, tank, heater, bathtub, closet of private dwelling place.
