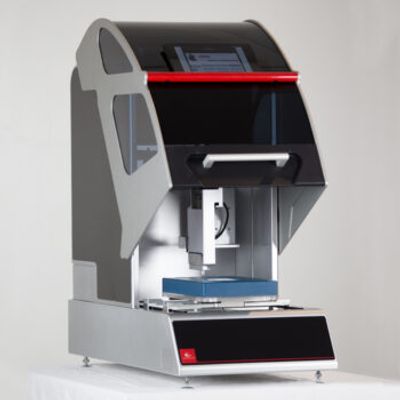

Ginolis - Model Cecilia-L -Dispenser
Cecilia-L dispenser is an extremely accurate, non-contact dispensing and aspirating platform. From 1000 µl all the way down to nanoliters; Cecilia-L can be configured with up to four Ginolis PMBi pumps and dispensing tips. The platform offers smooth and consistent dispensing of reagents and fluids on a compact scale.
- On-the-fly spotting
- Array printing
- Lateral flow membrane striping
- Microfluidic chip printing
- Microtiter plate liquid handling
Precise
Integrated PMB pump technology provides dispensing volumes from 1000µl down to single nanoliters.
Flexible
Customizable jig allows for a wide variety of applications including lateral flow membrane striping, microfluidic chip/cartridge printing and micro titer plate liquid handling.
- Dispensing tip holder and ceramic dispensing tips
- Customizable jig for targets (slides, micro titer plates, etc.)
- Degasser
- Washing station
- RFID-coded cover for safety and cleanliness
- Vision systems for quality inspection, positioning programing help and tip calibration
- Ionizer
- On-the-fly spotting
- Lateral flow membrane striping
- Microfludic chip/cartridge printing
- Micro titer plate liquid handling
- Biochips, Lab-on-a-Chip
- Custom applications
Dimensions (mm): 345x810x700 (WxHxD)
Maximum dispensing range (mm): 128 x 434
Z axis range (mm): 115
XY accuracy (mm): +/- 0.01 (absolute)
XY precision (mm): +/- 0.005 (repeatability)
XY speed: Up to 1m/s
No. of pumps: 1-4
No. of tips: 1-4
Dispensing speed: Up to 100 drops/s
Operating system: Ginolis Ginger
Dispensing pumps: Ginolis PMBi pumps
Volume range: PMBi 150: 1nl – 150 μl; PMBi 1500: 10nl – 1500 μl
