Ginolis - Model LFDA-1 -Lateral Flow Device Assembly
FromGinolis Ltd

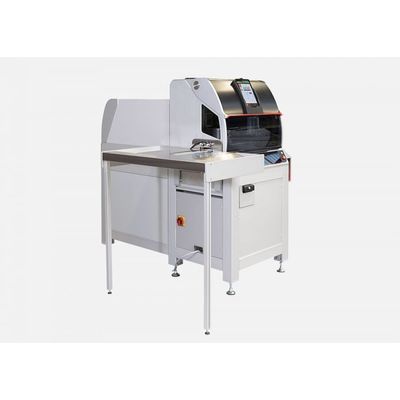

Ginolis LFDA-1 (Lateral Flow Device Assembly) is a standard system for semi-automated assembly of lateral flow devices. The affordable price, easy commissioning, and short delivery time provide a quick and smooth start to your rapid test production. With the LFDA-1, you can produce up to 24 parts per minute, taking less than 2,5 m² (less than 26 f²) footprint in your cleanroom.
Most popular related searches
- Assembly system for lateral flow devices
- Up to 20 parts per minute
- Modular integration
- Affordable
- Easy commissioning
- Fast delivery
System layout
- Manual feeding of the cassette bottom and top
- Automated strip cut & place – the robot places top plastic
- Cassette press and quality control
Functional description
- The cassette bottoms and tops are manually fed to the conveyor by the operator.
- The strip cutter cuts the strip and inspects its quality.
- The scara robot places the strip on the cassette bottom.
- The vision system inspects the direction of the strip.
- The robot places the top cassette at the bottom.
- The press unit closes the cassette top and bottom
- The quality control unit performs the final inspection of the finished product.
- Quality-approved products are ready for use.
- Failed products are dropped to the reject bin
Capacity
Up to 20 ppm , depending on machine configuration
Card infeed
Automatic strip cutting and magazine buffer for laminated cards
Card length
300-500 mm
Strip length
40 – 98 mm
Infeed
Manual bottom and cover feeding
Plastic parts
- Width 15 – 40 mm
- Length 50 – 110 mm
Connections
- 230/110V 10A
- 6 bar (150 l/min)
Optional features
- Strip width QC
- Strip Bad mark automatic reject
- Press force adjustable 0-1000 N
- Integrated pressing height measurement during pressing
