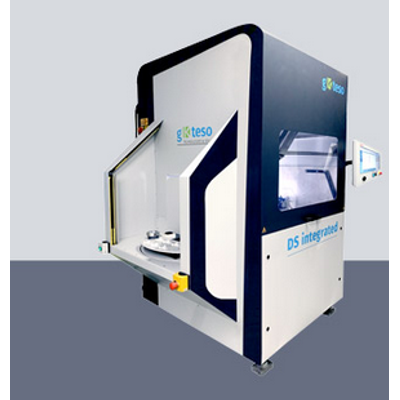

gKtesoModel DS -Integrated Deburring Machine

SHARE

The Deburring System DS integrated, a deburring cell with part feed, is a plant optimized for throughput, process safety, and complete automation for the post-processing of mechanically manufactured workpieces. Buy the DS integrated model, which compared to the base model, is equipped with an additional exchange table or rotary table.

Most popular related searches
  • High economic efficiency
  • Multi-axis machining of complex workpieces
  • Easy operation of deburring systems
With gKteso, deliver high quality at an affordable price

In international competition, only manufacturing companies that can deliver high quality at affordable prices have a chance. It is therefore becoming increasingly important for companies to optimize all manufacturing processes, including the removal of burrs that occur at the edges of workpieces due to material displacement during milling, punching, or turning operations.

In the metal and plastic processing industries such as automotive, aerospace, mechanical engineering, foundries, and the motorcycle industry, edge processing of workpieces used to be done manually. With the deburring cells from gKteso, partially and fully automated systems are now available on the market that more than meet today’s high-quality requirements at economically justifiable costs.

  • High throughput
  • Fully automatable
  • Improvement of quality

  • Working area: 500 mm x 500 mm x 300 mm
  • Total size: 1800 mm x 1800 mm x 2500 mm
  • Maximum speed: 1 m/s
  • Repeatability: 0.05 mm
  • Path accuracy: 0.1 mm
  • Workstations: up to 16
