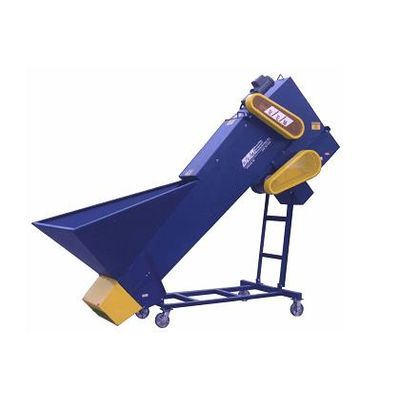

REM - Model GB Series -Glass Breakers
REMs GB Series Glass Breakers are complete crushing systems. Rugged, unitized construction produces a machine that will withstand years of punishing use in recycling operations. The GB series requires minimal maintenance and has a reputation in the recycling industry as a crusher built to last.
Durable Design
The GB series is a highly efficient machine incorporating many standard features that are only offered as options by other manufacturers. To operate, simply load the glass containers into the low in-feed hopper and the conveyor automatically feeds the crusher. The rotating steel crushing drum and breaker-plate design produces a uniform cullet size acceptable to the recycling industry. Features such as the self-cleaning tail-pulley and enclosed conveyor belt make the GB a durable and low maintenance machine.
High Productivity
With a capacity of up to 12,000 pounds per hour, the GB series will help you maximize shipping weights while being economical to operate. REM s makes the GB series affordable and dependable to improve your bottom line.
- All steel unitized construction for durability
- Self-cleaning tail-pulley for extended belt life
- Enclosed belt-return to minimize glass spillage
- Variable cullet size and density
- Heavy duty conveyor belt with alloy steel lacing
- 1 HP or 2 HP TEFC motor (depending on model)
- 3/4 HP TEFC conveyor motor
- PVC 200 conveyor with 1-1/2” cleats and Flexco 125 lacing
- 48” discharge height
- Crushing mechanism consisting of a rotating steel drum with hardened bars and a 3/4” thick steel breaker plate
- Heavy duty 3/16” steel crushing chamber
- Gear-reduced chain-drive conveyor
- 6” industrial steel casters
- External tail-pulley adjustment
- 240/480 volt, three phase
- Electrical components are UL listed
- NEMA-3R (outdoor) enclosure
- Manual start switches with thermal overload protection
- Individual motor overload/short circuit protection
- Safety interlock on crusher access door
- 110, 240 volt single phase GB-1 only
- 208, 380, 415, or 575 volt, three phase
- Custom conveyors, hoppers, and discharge heights
- As a mechanism for a platform, stand, or hopper
- If you don’t see it, ask us!
