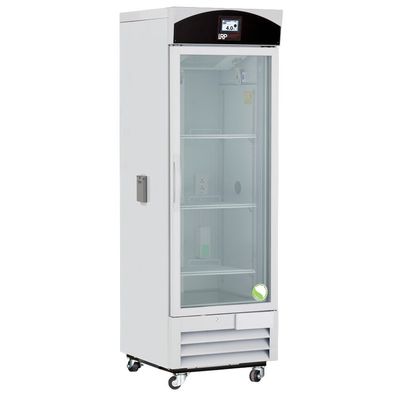

Model LRP-HC-CP-16-TS - 16 CU. FT. Capacity TempLog Plus -Glass Door Chromatography Refrigerator
The TempLog Plus Series Glass Door Chromatography Refrigerators are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings. An automatic cycle-defrost design prevents product damaging temperature spikes.
The all-new Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller. Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
- One Swing Glass Door, Self-Closing, Right Hinged, Not Reversible
- Three Adjustable Shelves (Adjustable In ½” Increments)
- Forced Draft Air Circulation
- Keyed Door Lock
- One GFCI Protected Duplex Electrical Outlet
- Two 2” Access Ports With Spring-Loaded, Self-Closing Gasketed Metal Covers
- Magnetic Door Gasket For Positive Seal
- Heavy Duty Door Handle
- Led Interior Lights Are Safety Shielded And Switch Controlled
- Swivel Casters (3 ½”)
- Probe Access Port (3/4")
- Advanced Hydrocarbon Detector
- White Powder-Coated Steel Exterior And Interior
- High Density Urethane Foam Cabinet Insulation
- Hydrocarbon, Natural Refrigerant (R290)
- Three Year Parts And Labor Warranty, Plus An Additional Two Year Compressor Parts Warranty
- Exterior dimensions: 26 1/2” w* x 29 3/4” d x 79” h with casters; 75 ½” h without casters. *width w/access ports closed; 34 1/2” width w/access ports open
- Cycle defrost
- 115v, 60 hz, 3 amps, 1/5 hp
- ETL listed
- Shipping weight: 283 lbs. Note: this unit requires two (2) outlets
- Microprocessor temperature controller
- Adjustable operating temperature range: 1°c - 10°c
- Touch screen digital temperature display and alarm module
- Password-protected control panel
- Sample simulated digital temperature display; .1° resolution, adjustable temperature display in celsius or fahrenheit
- Active temperature scale bar display
- Resettable 1-point min/max history and digital 24-hour temperature chart temperature data logging
- Usb port for data transfer and software updates
- Real-time operational display clock
- 4-20ma output
- Electronic troubleshooting guide
- Electronic qr code to access owner’s manual & technical support contact info adjustable alarm volume
- Audible and visual high/low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
- Sensor error alarm, power failure alarm, door ajar alarm, low battery alarm operation indicator
- Alarm validation (audible, visual, and remote alarm) and alarm mute with ring back
- Remote alarm contacts
