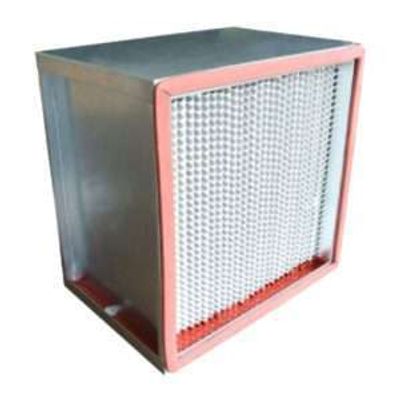

Arconik - Model FGD-HT Series -Glass Fiber Deep Pleat Filter

FromArconik International Pvt. Ltd.

SHARE

Arconik’s FGD-HT filters series are made from aluminum or stainless still new generation separators in deep pleated style that can sustain high temperature when in continuance, in rigid non-corrosive metal frame, with micro fine fiberglass media, allowing high air flow and low pressure drop. The FGD series is mainly used in air handling where the structure or air temperature gets up to 250 Celsius degrees , one stage prior to HEPA filters, available in grades F6 to F9 or MERV 9 to MERV 16 and tested in accordance with EN779-2012 / ISO 16890 / ASHREA 52.2-2017.

Most popular related searches

glass fiber deep pleat filter

HEPA filter testing

glass fiber filter

pleated fiber filter

The FGD-HT series are filters made from aluminium or Stainless Steel seperators in deep pleated style that can sustain high temperatures when in countinous operation, in rigid non-corrosive metal frames with micro fine fibreglass media with , allowing high air flow and low pressure drop.
Mainly used in air handling applications where the structure or the air temperature gets upto 250 degree celcius, one stage prior to HEPA filters
Tested in accordance to EN779-2012 / ISO 16890 / ASHRAE 52.2-2017
Filter grades F6 to F9 OR MERV 9 to MERV16

High velocity airflow & low pressure drop
High quality micro fibreglass paper
Very economical due to higher final pressure drop
Rigid & non-corrisive frame that can withstand temperatures as high as 250 degree C
FGD-HT series available in various sizes & installation options to fit almost any customer requirements.
