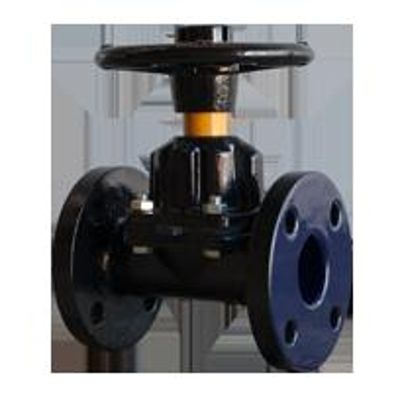

KDV- Straight Through type Diaphragm Valves - Glass Lined
FromKDV Flow Limited
KDVs Straight Through Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.Most popular related searches
Features & Benefits
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator
Applications
Water and waste water
Organic sludge
Effluent treatment
Lime solutions
Acidic Sludges
Slurries
Specification
Nominal Size:
DN25-DN200
Face to Face:
BS, DIN, MSS
Flange Drilling:
ANSI#125/150, PN10/16, Table D/E, JIS
Pressure:
Up to 16 Bar (Elastomer Diaphragm)*
Up to 10 Bar (PTFE Diaphragm)*
*Max pressure varies across size range
