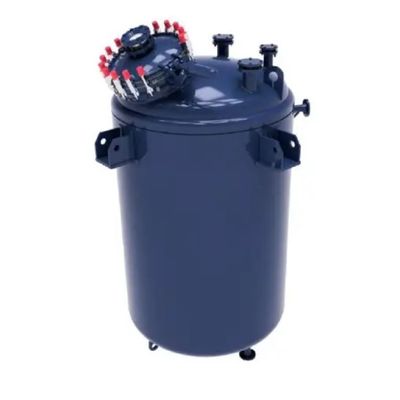

Standard Glass - Glass Lined Recievers
Receivers, also known as Flange-Type and Monoblock Glass-Lined Receivers, are specifically designed for various chemical and industrial processes. These vessels are typically located close to reactors for dosing reactants upstream or recovering specific substances downstream of the reaction. Flanged receivers feature flanges at the top, providing ease of maintenance, while Monoblock receivers are constructed as a single, seamless unit for enhanced durability and reduced leakage.
Our receivers are designed and constructed per ASME Section VIII, with equipment dimensions as per DIN 26136. All fabrication is tested according to ASME Section IX, and glass lining is tested per ISO/DIN 26136. We ensure that our materials and consumables adhere to ASME Section II standards. Our facilities are accredited with ISO 9001,14000, and 45000 certifications and approved with ASME U & R stamps.
- Construction Material: Stainless Steel or Carbon Steel
- Pressure Range: Vacuum to 6 Bar(g) / 87 psi(g) Capacity Range:
- AE-Type Design: 1 Litre to 16,000 Litres
- CE-Type Design: 1,000 Litres to 40,000 Litres
- Design Standards: DIN 26136
- Manufacturing Standards: ASME Section VIII Div.-I, ANSI-B 16.5 #150
- Compliance Options: PED, ATEX, and CE Additional Features:
- Heating/Cooling Jacket Option
Notes:
- All Dimensions are in "mm", unless otherwise specified
- Without prior norice. Specifications are subject to change for continual improvment.
- Cusom built capacities can also be manufactured on customer request.
- A - Indicates details for Jacketed Equipment
