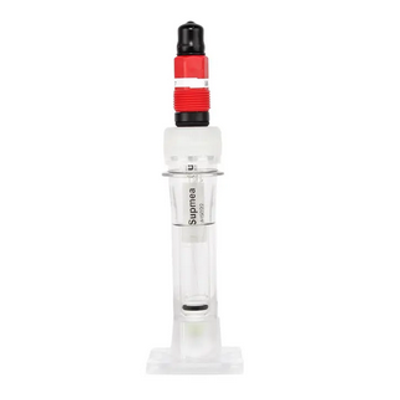

Meacon Germany - Model MIK-PH5022 -Glass pH sensor
MIK-5022 tecLine electrodes are high-quality sensors for professional applications in process and industrial measurement technology. These electrodes are known for their use of top-quality materials and components. They are designed as combined electrodes (the glass or metal electrode and the reference electrode are combined in one shaft). A temperature probe can also be integrated as an option, depending on the type.
Most popular related searches
pH sensor
industrial monitoring system
wastewater oil
industrial wastewater
process monitoring
industrial process monitoring
wastewater containment
temperature probe
wastewater engineering
industrial wastewater process
- Zero potential point:7 ± 0.5 pH
- Conversion coefficient: > 96%
- Installation size: Pg13.5
- Pressure: 1 ~ 6 Bar at 25 ?
- Temperature: 0 ~ 130? for general cables
- Product: Glass pH sensor
- Model: SUP-PH5022
- Measurement range: 0 ~ 14 pH
- Zero potential point: 7 ± 0.5 pH
- Slope: > 96%
- Practical response time: < 1 min
- Installation size: Pg13.5
- Heat resistance: 0 ~ 130?
- Pressure resistance: 1 ~ 6 Bar
- Connection: K8S connector
- Industrial wastewater engineering
- Process measurements, electroplating plants, paper industry, drinks industry
- Wastewater containing oil
- Suspensions, varnishes, media containing solid particles
- Two-chamber system for when electrode poisons are present
- Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF
