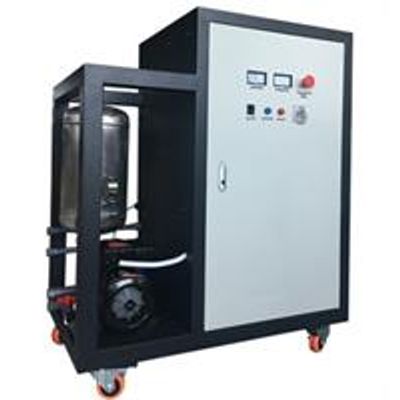

Globalozone - Model G0-03W - Ozonated Water Machine
From KGS Ozone Generators
Use for drinking water treatment, waste water treatment, high concentration ozonated water for washing, sterilization etc
- The equipment uses with Pressure Swing Adsorption (PSA) technology to separate N2 and O2 from air, also can take off impurities in the air, in order to product high purity O2 gas.
- All feed gas treatment devices are installed inside: Refrigerant air dryer, oil free air compressor, condenser, in order to give clean dry air to PSA oxygen generation system for extending the life time.
- Air cooled ceramic ozone generator with enclosed HV transformer
- Nano bubble gas-liquid mixing pump for mixing oxygen gas into water.
Such as 2M3/Hr Gas-liquid Mixing Pump
- With ultra fine air bubble 20~30u, 5LPM PSA oxygen concentrator with 90%+-3%, 12G/Hr corona discharge ozone generator with 50Mg/L ozone output concentration, 3~5PPM ozonated water concentration
PS: or it can be higher water flow capacity, such as 6M3/Hr, 12M3/Hr (by mixing pump), even higher by venturi mixing... ...
