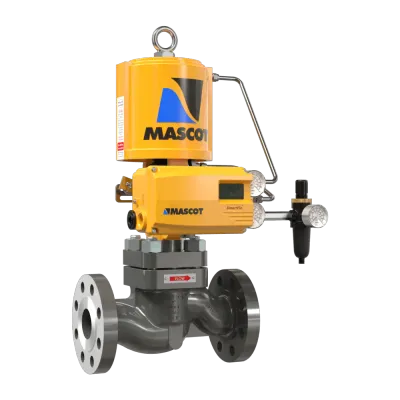

MASCOT -Â Model GFlo -Globe Control Valve for Pipeline Fluid Control
The GFlo Globe Control Valve is engineered to optimize fluid control across pipelines, excelling in both liquid and gaseous environments. It features a reciprocating plug design for precise flow management, supported by a stationary seat that allows for stringent rate control. The spring-cylinder actuator offers enhanced positional accuracy, improved repeatability, and robust response under high-speed conditions, far outperforming traditional diaphragm-operated valves. GFlo's design is tailored for swift maintenance, incorporating a top-entry style with clamped components to simplify servicing. Available in multiple configurations, including 2-Way and 3-Way designs, the valve is adaptable to various industrial standards. It supports anti-cavitation and noise reduction trims and is compatible with high-temperature applications up to 400°C. A versatile choice for industries such as Oil & Gas, Petrochemicals, and Power, GFlo promises reliability and a reduced total life cycle cost with its robust industrial design.
Globe Control Valve Manufacturer for All Your Fluid Control Needs
The globe valves are linear motion valves that start, stop and regulate fluid flow in pipelines.
The GFlo globe valve excels in delivering superior performance for both liquid and gaseous services. It distinguishes itself with user-friendly attributes, offering easy, quick, and cost-effective maintenance. GFlo’s spring-cylinder actuation ensures precision in positioning, a strong response, repeatability, and controlled high-speed movement, setting it apart from diaphragm-operated valves.
It features a reciprocating plug and a stationary seat, allowing for accurate control of flow rates.
MASCOT is the number-one Globe Control Valve Manufacturer recognized worldwide and takes pride in itself for providing high-quality and reliable valves.
Our globe valves feature certain typical body designs such as: 2-Way and 3-Way Valves, Angle Pattern Globe Valves, Y-Pattern Globe Valves, Jacketed Globe Valves and Z Type Globe Valves.
MASCOT exports its products globally and deals with various industrial applications in Oil & Gas, Petrochemical, Power, Chemical, Pulp and Paper, Sugar, LNG etc industries.
- Exceptional Shutoff: The valve uniquely combines spring force, fluid pressure, and supply air pressure for exceptionally tight shutoff.
- Non-Galling Design: MASCOT GFlo features two top heavy-duty stem guides within the bonnet which eliminates contact between the plug and retainer keeping galling issues at bay.
- Ease of Maintenance: Top entry design with clamped-in seat and clamped in actuator ensures that the maintenance is swift and easy.
- Spring Cylinder Actuator: The MASCOT field reversable spring cylinder actuator offers higher accuracy, higher stiffness, better repeatability, lower hysteresis, and more thrust elevating the overall control valve performance.
- Trim Combinations: Various trim combinations ranging from micro-flow to full capacity are available in Equal Percent, Linear and Quick Open as a standard. Trim upgrades are easy and economical as the flow is characterized by the plug contour and not the cage.
- Severe Service: Anti-cavitation and noise reduction trims can be easily installed within the same body assembly as the standard trim.
- Deeper Packing Depth: The standard bonnet is suitable for up to 400°C (750F). The packing set includes a lower viper packing followed by a spacer and then the upper packing which keeps the upper packing area clean, and the added length allows for a higher temperature range for the packing.
- Integral Flange (ANSI - RF, RTJ, FF, DIN EN 1092 Types A to H, GOST, SANS, JIS)
- Socket Weld
- Butt Weld
- Screwed (NPT, BSP)
- Separable Flange (ANSI - RF, FF)
- ASTM A216 WCB, WCC
- ASTM A217 WC6, WC9, CA15, C5, C12, C12A
- ASTM A351 CF8M (SS 316), CF3M (SS 316L), CF8 (SS 304), CF3 (SS 304L), CG8M (SS 317), CG3M (SS 317L), CF8C (SS 347), CK20 (SS310), CN7M (Alloy 20), 904L
- ASTM A494 CW12MW (Hastelloy C276), CX2MW (Hastelloy C22), CW6MC (Inconel 625), M-35-1 (Monel), N12MV (Hastelloy B)
- ASTM A743 CA6NM (UNS S4150)
- ASTM A995 CD3MN (Duplex 4A), CE3MN (Super Duplex 5A), CD3MwCuN (Super Duplex 6A), CD4MWCuN (Duplex 1B)
- ASTM B148 C95800 (Aluminum Bronze)
- Other Castable and Forged Grades on request
- SS 316, SS 316L, SS 304, SS 304L, SS 317, SS 317L
- 17-4PH, SS 410 HT, SS 416 HT, SS 440C HT
- 904L, Monel K400, Monek K500, Alloy 20
- Hastelloy C276, Hastelloy C22, Hastelloy B
- Inconel 625, Inconel 718
- Duplex 4A, Duplex 1B, Super Duplex 5A, Super Duplex 6A
- Solid Stellite, Solid Tungsten Carbide
- Stellite Overlay, Tungsten Carbide Overlay
- Others on request
- Heavy Duty Industrial Design.
- Highest Reliability.
- Exceptionally Tight Shutoff.
- High Thrust Cylinder actuator.
- Ease of Maintenance.
- High degree Interchangeability.
- Low Total Life Cycle Cost.
- Even Galleries
- Various End Connections
- Highly Configurable
- Interchangeable between types
- Self Centering Design
- Obeys the command
- No Sticking, no shutting down of process
- Easier to maintain
- No leakage on closure
- Tougher than the Toughest
- Easy installation, Compact body
- Minimal life-time cost
