RMT - Model 20s Series -Globe Straight Way

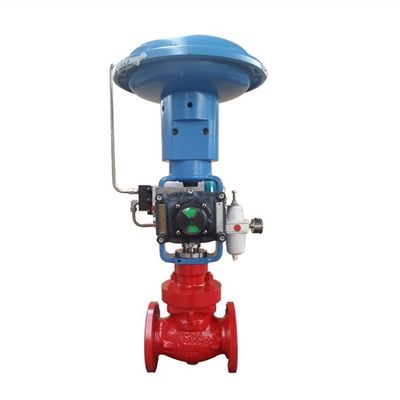

Top Guided Globe Control Valve

The 22 Serie Globe Control Valve is a quick-change valve with unbalanced plug top guided by a special bushing, particularly suitable for dirty fluids. Plug is the regulating element of the trim, since it`s contoured to ensure the valve desired flow characteristic behavior. The quick-change construction is obtained by the use of a retainer ring that keeps in position the seat ring and makes possible to energize the body-seat gasket.

Due to its simple and rugged construction, it is used in a wide range of applications. The combination of shutoff capabilities, trim designs, precise valve positioning, and actuator stability offers optimum control performances.

• DN up to 6’’.
• Quick-change Design.
• Heavy Top Guided.
• Characterized Throttling Plug (Linear, Equal percentage, Quick-Opening).
• Leakage Class IV by Standard, Tight Shutoff Class V and Class VI.

• Metal/soft seated.
• Packing fugitive emission compliant, bellow sealing.
• Exotic materials.
