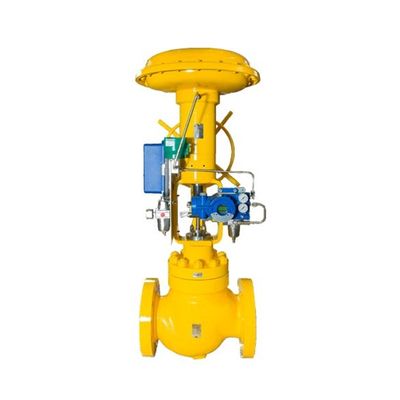

RMT Valvomeccanica - Model Serie 23 -Globe Straight Way Cage Guided Control Valve
The 23 Serie Globe Control Valve by RMT VM is a highly versatile control solution designed for demanding applications requiring high precision and reliability. It's a single seat valve with a quick-change cage guided design, offering options for either unbalanced or balanced valve trim. This flexibility helps to manage the resultant forces on the valve plug, catering to diverse pressure and temperature conditions prevalent in heavy duty operations. The valve features a heavy cage guide and supports various cage configurations, including linear, equal percentage, low noise, anticavitation, and multi-stage trims, ensuring it can meet varied industrial demands. It complies with Leakage Class IV standards, with tighter shutoff classes V and VI also available. This valve provides metal or soft seating options and adheres to packing fugitive emission standards with optional bellow sealing. Enhanced with exotic materials, the valve is engineered for robust performance, delivering precise control through superior actuator stability and positioning.Most popular related searches
control valve
cage control valve
balancing valve
globe valve
fugitive emissions
emissions standard
plug valve
metal structured packing
valve actuator
valve operator
RMT VM Serie 20s is the main family of linear globe control valve, with a single seat construction and a straight way design.
TOP GUIDED GLOBE CONTROL VALVE
The 23 Serie Globe Control Valve is a single seat, quick-change cage guided valve. This execution offers the possibility to choose between an unbalanced or balanced valve trim designs in order to reduce the resultant force acting on the valve plug to meet any possible pressure/temperature combination for heavy duties.
The cage design allows achieving the requirements for the most demanding application and makes possible to perform the quick-change construction.
The combination of shutoff capabilities, trim designs, precise valve positioning, and actuator stability, offer optimum control performances.
- DN up to 24’’.
- Quick-change Design.
- Heavy Cage Guided.
- Wide range of cage executions available (Linear, Equal percentage, Low Noise trims, Anticavitation Trims, Multi-stage Trims).
- Leakage Class IV by Standard, Tight Shutoff Class V and Class VI.
- Metal/soft seated.
- Packing fugitive emission compliant, bellow sealing.
- Exotic materials
