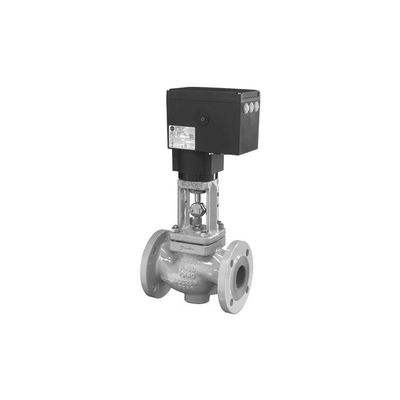

Samson - Model 3241 - Electric - ANSI -Globe Valve
Valve Style: Globe valve. USAGE: Low-pressure service, Throttling service. Version: ANSI. Medium Temperature: -196 to 425 °C / -320.8 to 797 °F. Supply: Electric. Valve Size: NPS ½ to NPS 12. Pressure Rating: Class 125 to Class 300. Lining: without.
Most popular related searches
globe valve
linear actuators
linear actuator
planetary gearing
hybrid stepper motor
electric valve
noise control
strainer
noise insulation
valve actuator
Special features
- Consisting of globe valve and actuator
Accessories
- Type 2 N Strainer
- Type 2 NI Strainer
Options
- Flow divider for noise reduction
- Insulating section
3241 - electric - ANSI can be combinated with the following actuations:
3274 - Electrohydraulic actuator
Special features:
- Linear actuator with 15 mm or 30 mm rated travel
- Compact design including electric or optionally mechanical override
- Optionally with fail-safe action (actuator stem retracts or extends) for version with electric override
Special features:
SAM DIGITAL READY
- Linear actuator with 15 mm or 30 mm rated travel
- 15 mm version optionally with fail-safe action (actuator stem retracts or extends)
- Optionally three-step version or with digital positioner
- Optionally with integrated yoke or ring nut including the necessary stem connecting parts
- Three-step version:
- Synchronous motor with maintenance-free planetary gear
- Version with digital positioner:
- Stepper motor with maintenance-free gearing
- All function settings performed using a rotary pushbutton on the actuator
- Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software
