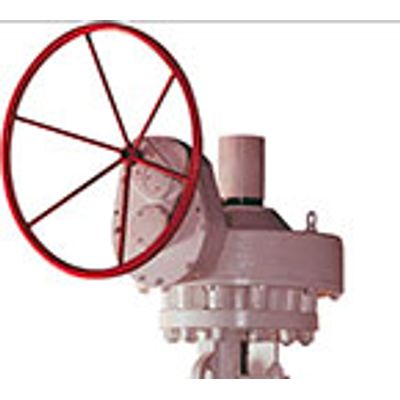

Firsa - Model 150LBS – FIG. 111 -Globe Valve

Design according to  BS 1873 , ANSI B 16.34. Bolted bonnet, O.S.& Y. Swivel disc. Full range of body and bonnet materials .
Renewable seats . Rising Handwheel . Flanges according to ANSI B 16.5 from 2” to 24” . Flanges according to ANSI B 16.47 from 26” . Bw ends according to ANSI B 16.25 . Face to face according to ANSI B 16.10 . Testing according to API 598, BS EN ISO 12266 PART 1.
