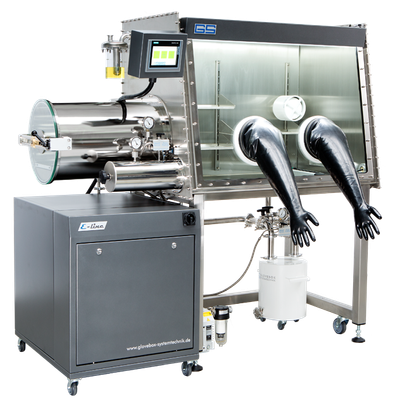

GS - Model MEGA E-Line | M-Line -Glovebox with Complete Inert Gas System
The GS MEGA E-Line | M-Line Glovebox is a comprehensive inert gas system designed to maintain extremely low levels of oxygen and moisture, achieving less than 1 ppm for both. This advanced system is suitable for applications where an inert atmosphere is critical, such as chemical synthesis, high-purity material handling, and electronics manufacturing. Featuring robust design and construction, the glovebox ensures a controlled environment with precise gas purification capabilities thanks to its integrated gas purifier options available in the E-Line and M-Line series. Additionally, it is equipped with an antechamber and a variety of attachments to enhance functionality and user convenience. The glovebox dimensions and the detailed specifications of each component are outlined to cater to different operational requirements, ensuring safety and efficiency in highly sensitive processes.
- High quality manufacturing ISO 9001:2008
- Leak test according to ISO 10648-2, Class 1
- Stainless steel 1.4301 (AISI 304)
- Different sizes and shapes for 2, 3, 4 and more gloves
- Double-sided versions
- Modular design for high flexibility (expandable)
- ESD package (electrostatic discharge)
- HEPA H14 filters
- Extendable shelves
- High performance LED – pure white
- Front window in safety glass, easy to disassemble
- Leveling feet and solid base stand with castors
- Filter columns for the removal of O2 and H2O
- Achievable values for O2 and H2O < 1 ppm
- Sensors for O2, H2O and pressure
- Lock off valve for O2 sensor
- Fully automated purification, purging and regeneration
- For gloveboxes up to 5,2 m³
- E-Line (1 filter column) and M-Line (2 filter columns)
- GS ECO-Safety Mode < 100 W for standard system
- Siemens PLC with 7“ color touch screen
- Intuitive GS software
- Recording of values for O2, H2O and pressure for 60 days
- Reading of the recorded data via USB interface
- Alarms for O2 and H2O values
- Standard antechambers in d = 400 mm and d = 150 mm
- Glass doors for d = 400 mm antechambers
- Automated antechamber cycles
- Optional: Easy-Close-System (inner door closes automatically)
- Different antechamber sizes and shapes available
- Heating option available
- Solvent vapor removal (also regenerative)
- Freezer up to −40 °C
- Spin coater
- Vacuum deposition – evaporating chambers
- Laminar-Flow-Module
- Further individualized solutions available
