GN - Hydrocyclone Desander

Following is desander for two different industry and system, Part 1 two desanders are for oil gas drilling, CBM drilling mud solids control. Part 2 desander system with mud tank is for contruction operation for No dig, Bored Pile drilling deander for bentonite recycling.

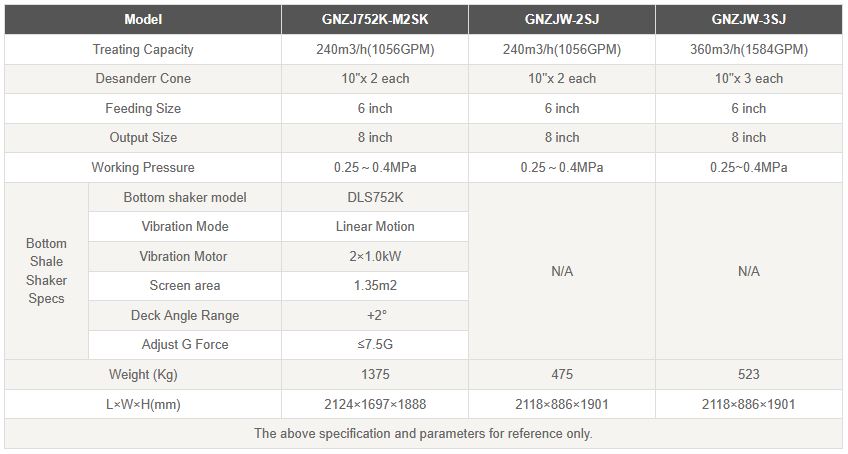

GN desander is the second class and the third class solid control equipment to treat the drilling fluid. According to the size of the cone diameter, it is divided into Desander and Desilter. Usually the cone diameter is more than 6″is called Desander, and used as the second-control equipment in drilling operation. We commonly used 8 "and 10" cones desander to separate solid-phase particle size 47-76μm in the drilling fluids.

• The entire shaker deck undergoes heat treatment to relieve welding stress, enabling it to withstand high G force.
• The shaker screen is installed with a mechanical ratchet wrench gear for quick tightening, facilitating easy disassembly and ensuring long-lasting durability.
• The wedge blocks for tightening the screen mesh are made of nylon, providing high temperature resistance, corrosion resistance, and wear resistance.
• Vibration motor: Italian OLI brand.
• Polyurethane material is used for sealing between the shale shaker and screen, ensuring a long service life and easy replacement.
• The supporting rubber strips for the bottom frame of the vibration screen are made of stainless steel, offering strong corrosion resistance and a long service life.
• The electrical control box is made of aluminum alloy/stainless steel explosion-proof material, ensuring good sealing and strong corrosion resistance.
• The pre-tensioned shaker screen allows for convenient and quick disassembly and replacement.
