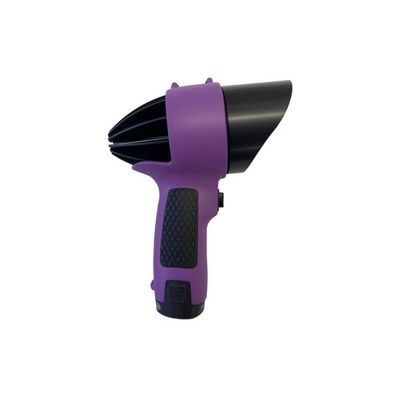

Model Midas UV-A LED Torch -UV Inspection Equipment
High-performance UV-A inspection torch for professional UV fluorescent inspection applications including detection of cracks, leaks, hydrocarbons, clearcoats, security markings and more.
Most popular related searches
inspection system
UV fluorescence detection
hydrocarbons leak
safety supply
hydrocarbons monitoring
safety regulations
- High UV-A output at 365nm
- > 2,800 uW/cm2 at 38cm (15″)
- Bosch 12V battery technology
- 2 batteries, charger, UV specs and case
- Conforms with RRES 90061, ASTM E3022 and Airbus AITM6-1001
What’s included
- Midas UV-A LED Torch
- 2 x Rechargeable Batteries
- Battery Charger
- UV Spectacles (clear)
- Protective Carry Case
- Operating and Safety Manual
Power supply requirement
- 12V DC rechargeable battery
Battery charger
- Input: 220-240 V 50-60 Hz (32W)
- Output: 3.6 V – 12V (2A)
- 0mm (centre of beam) ; 2,860 uW/cm2
- 100mm diameter ; 2,340 uW/cm2
- 200mm diameter ; 1,950 uW/cm2
- 300mm diameter ; 1,500 uW/cm2
- 400mm diameter ; 800 uW/cm2
- 500mm diameter ; 80 uW/cm2
- UV source : 6 x UV-A LEDs
- Life span : 25,000 hours
- Peak wavelength : 365 nm
- Weight of UV torch : 0.9 Kg
- Weight of case with torch and accessories : 5 Kg
