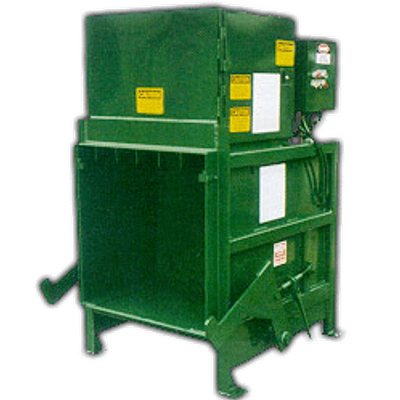

GOC - Model NC-100 -Stationary Compaction Equipment

FromGlobal Odor Control Technologies (GOC)

SHARE

Container Features: 5/16" Steel plate floor with 3" structural channels. .25" Steel plate sides with 3"x2"x.25" structural steel tubing. Breaking bar 6"x6"x.5" with retaining teeth. .5" Steel plate hydraulic cylinder mounts. Replaceable .5" UHMW polyethylene wear bars on ram sides, top and bottoms of platen for a smooth, quiet and near frictionless operation. Weatherproof control panel and power pack. Removable rear access panel. Container guide rails. Biodegradable hydraulic fluid.

Most popular related searches

biodegradable hydraulic fluid

hydraulic cylinder

compaction container

hydraulic control system

Electric / Hydraulic Features

(PLC) Controller power unit
E-Stop button
Automatic single cycle
Auto/manual selector
Key lock on/off switch
Low oil sensor shutdown
Multi cycle
80%-100% Full light
Automatic shutdown with auto safety retract
15' remote
Fluid level and temp gauge
Fluid filled pressure gauge
Inlet fluid strainer
15' hydraulic hoses
Left of right side hydraulic connections

Receiver Container

2yd Rear Load
4yd Rear Load
6yd Rear Load
8yd Rear Load
2yd Front Load
4yd Front Load
6yd Front Load
8yd Front Load

This Equipment Conforms to all ANSI Z 245.2 Safety Standards.

Overall Length: 64"
Overall Width: 58"
Overall Height: 49"
Compactor Capacity: 1 Cubic Yard
Platen Area: 36"x31.5"x48"
Charge Opening: 31"x48"
Ram Penetration: 8"
Twin Cylinder: 2.5"x36"x1.5"
Line Pressure: 2000 PSI
Max Line Pressure: 2500 PSI
Max Ram Force: 19500 LBS
Cycle Time: 40 Seconds
Fluid Capacity: 35 Gallons
Pump: 5 GPM
Motor: 5 HP/Tri-Volt,3 Phase
Loading Height: 43"
App. Shipping Weight: 3400 LBS

5 HP 220V, 1 Phase
Fluid reservoir heater
Driver pack out
Open hopper
Enclosed doghouse with door and interlock
Walk on or drive on deck with 42" safety rails
Side loading hoppers
Through-the-wall chutes
