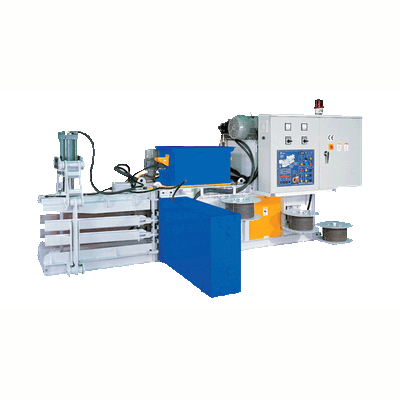

GODSWILL - Model GB-0505FL-II -Automatic Baling Press

Main Cylinder : φ125 × 1450st. Horsepower : 20 HP. 15 K.W. Feed Opening Dimensions (mm) : 1000 × 1000. Bale Chamber(mm) : 500x500x1450+1040x520x475. Bale Dimensions(mm) : 500 × 500 × 600. Bale Density (O.C.C) : 450~500 (kg/ m3). Max.tdrust Force : 21 Ton (170kg / cm2). Cycle Time (Unload) : 10.3 sec. Production (40~60 kg/ m3) : 2.5~4 TPH. Number of Ties : 3. Wire Size (mm) : φ2.4~2.7 (㎜). Oil Reservoir : 500 L. Machine Weight : 4.5 Ton.
