Orbit - Model Goes.Link Radius -GOES-Based Uplink and LPWAN Gateway Device
Orbit GOES.Link Radius is a GOES-based uplink and LPWAN gateway in one device. It includes all hardware (external battery pack not included), software and services needed for data acquisition and transmittal to cloud-based data storage via the GOES network, plus viewing and analysis. It also features Radius LPWAN technology, functioning as a Radius Gateway in an SDI-12 wireless network. Orbit GOES.Link Radius is a 300 or 1200 baud GOES transmitter that sends data via the GOES Data Collection System (DCS). The Orbit Xo Radius will both collect data from sensors connected to it, act as a data hub for all SDI-12 sensors (connected to TITAN Radius Motes), in an LPWAN network and automatically forward all data to the cloud via GOES. This eliminates the need to buy both a Gateway for your LPWAN network and a separate GOES uplink.
- Includes everything except a power source (external battery pack not included) in an integrated system for quick, reliable deployments.
- Connects to Radius Motes to permit GOES transmission of remote SDI-12 sensors.
- Weatherproof packaging for deployment in harsh environments. Quick-connect military-style connectors
- Supports SDI-12, analog, and pulse sensors, providing flexible deployment options.
- Data logged locally on an SD flash storage card as redundant backup.
- One year subscription to CloudInsight cloud-based hub software included.
- Up to 10 sensors per Mote/slave, 6 Motes/slaves per repeater, 3 repeaters per network.
- NESDIS CS2/v2.0 certified 300/1200 baud GOES transmitter.
- Integrated data logger.
- Functions as the gateway/master of a TITAN Radius network.
- CS2 GOES transmitter
- Functions as a TITAN Radius Gateway
- Includes solar panel, solar charge regulator, SD card for backup storage, all mounting hardware,
- Includes one year of cellular service, pre-provisioned and ready to go
General
Data Storage: Removable 2 GB SD memory card (FAT 32)
- Non-volatile memory: All setup parameters
- Logging interval: 1 second to 24 hours (sensor dependent)
- Reporting interval: 2 minutes to 24 hours
- Cellular communications:
- Dual band CDMA 800, 1900 MHz
- Penta-Band HSPA+
- GSM Quad band 850, 900, 1800, 1900 MHz
- UMTS/HSPA Penta Band 850, 900, 1700, 1900, 2100 MHz
- EGPRS / WCDMA / HSDPA / HSUPA Protocol Stack
Current Consumption
- Listen/trigger mode/idle: <2mA
- Data receive / store / prepare for transmission: 150 mA
- Data transmit: 250 mA
LPWAN Communications:
- Range: Up to 15 km (9.3 miles). Signals can penetrate certain foliage, buildings and obstructions.
- Range depends on antenna height/type and obstacles in path of line of sight.
- Wireless frequency: 915 and 868 MHz certified, 860-930 MHz frequency range
Electrical
- Internal battery options:
- Primary: 8.6Ah - 38Ah, 3.6V
- Secondary: 10Ah Li-ion rechargeable
- Custom option: Hybrid
- TX output power: 24.3 dBm (270 mW)
- Solar panel: 5W, 12V
- Input voltage: 10-18V, reverse polarity protected.
- TX output power: 128 mA
- Optional external battery pack: 10-18V
Sensors
- Maximum number of sensors: 10 directly connected, 180 SDI-12 sensors in an LPWAN network
- Analog input:
- 4 analog channels, single-ended
- Input type: 2 wire, 0–2.5 V or 4-20 mA current loop
- Sensor power: 24 VDC switched (under firmware control)
- Analog to digital (0-2.5 VDC): 21-bit resolution
- Pulse input:
- 2 pulse channels
- Continuity or TTL: 0 V to 2.2 V - 5 V
- Maximum rate: 10 pulses per second
- Sensor power: 12VDC switched, during measurement
- Maximum output current: 138 mA (12V), up to 500 mA pulse (12V) with capacitor battery option (available 2018-Q3)
- On-board sensors: Temperature sensor for optimizing power management and battery charging in cold operations.
Environmental
- Environmental sealing: IP65
- Operating temperature: -40°C to 75°C
- Storage temperature: -40°C to 75°C
- Lightning protection: AC transient voltage suppressor (TVS) on each sensor port input
Physical
- Dimensions (H x L x W): 4.1 cm (1.6”) x 17.0 cm (6.7”) x 12.2 cm (4.8”)
- Warranty: 1 year limited parts and labour
- LED indicators: RSSI, sensor, battery, operating status
- Weight (excluding battery): 12.8 oz (400g)
- Weight (including full battery configuration): 19.2 oz (600g)
- Warm-up time: 30s
- External antenna: Wip antenna, high-gain omnidirectional
- Security: 128 bit AES encryption

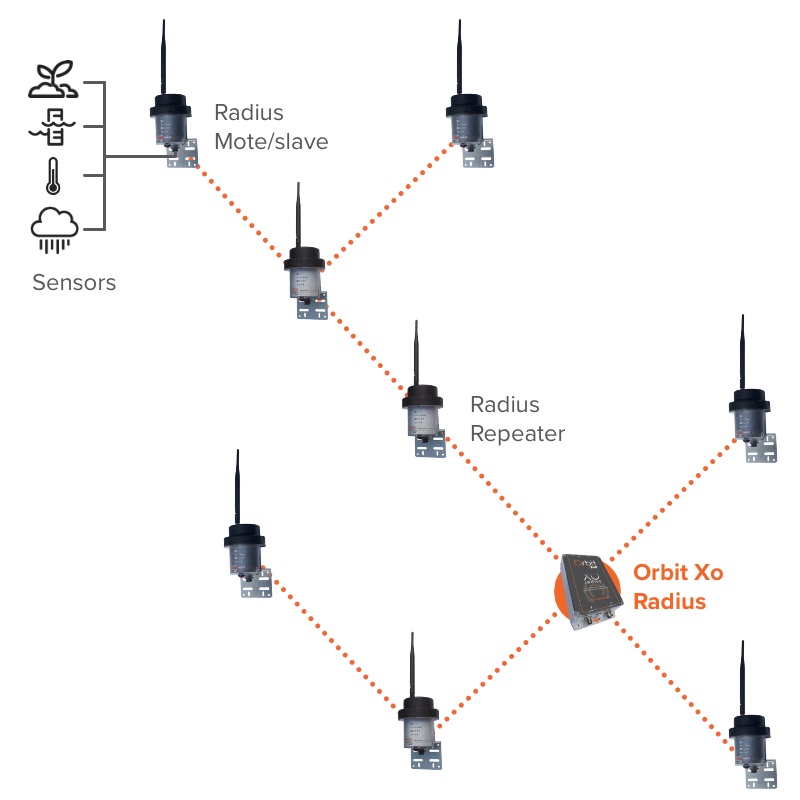

The Orbit GOES.Link Radius acts as a TITAN Radius Gateway. Each Mote/slave provides a wireless SDI-12 LPWAN bridge between a sensor and a Radius Gateway/master (which connects to data logger or uplink) or a Radius Repeater (extends the network even farther).
Data Processing for Irrigation Insight
- Insert saturation and stress markers
- Mark irrigation or water events
- Track rainfall and water events
- Create your own ag index
- Build a growing degree day “virtual” sensor by combining data from multiple real sensors and applying a calculation.
- Plot data from segments at each depth of a GroPoint Profile to determine optimal irrigation to penetrate the bottom of the root zone.

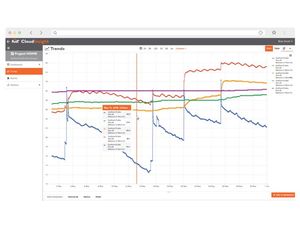

- The web-based CloudInsight data hub is incredibly powerful and intuitive. It’s used to configure all aspects of the station including logging and reporting intervals, and all analog, pulse and SD-12 sensors. Make changes at any time, from any device.
- Easily locate and access current and historical data, and configuration of all stations and sensors.
- Send alarms (email or SMS) when a parameter reaches a threshold or changes by at least a specified value over a period of time. Parameters can be measured by sensors or “virtual” (computed based on one or multiple sensors with a formula applied).
