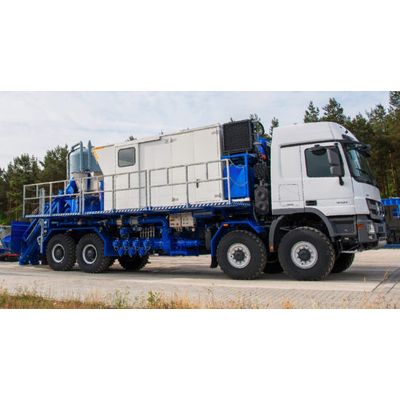

Goes - Frac Blender

Our frac blenders are a proven reliable system to support customers quality hydraulic fracturing operations. The equipment is designed and tested to operate in ambient temperatures from -40 degrees up to 55 degrees Celsius and can deliver up to 130 barrel per minute.

Most popular related searches

chemical transfer pump

data acquisition system

The “heart” of hydraulic fracturing equipment
Stimulation blender and chemical storage additive unit
Designed for use in hydraulic fracturing and related use
Fluid / proppant blender designed to handle higher viscosity fracturing fluids and increased proppant concentrations or low viscosity fluids with low proppant concentrations at high rates
Typical operations: well acidizing and proppant blending
Utilized for extreme climates from arctic to desert and tropical conditions

Truck, trailer or skid mounted
Various diesel engine configurations in order to reach the desired HP rating
Built to European standards (optional)
CE Conformity (optional)
Automatic Tub-Levelling System (ATL)
Automatic Chemical Control System (ACC) for liquid and dry additives
Suction and discharge manifolds on both sides of the unit for ease of rig up (optional)
Suction and discharge manifold flow meters
Swing augers, automatically or manually controlled
Blending tub for various rates
Air conditioned (optional) control cabin with clear view of the mixing tub
Hydraulically driven mixing systems
Centrifugal suction and discharge pumps
Automatic density control system
Data acquisition system
Viscometer and pH meter (optional)
Chemical transfer pump
Pneumatic remote valve actuators
Diesel / air flushing system
Various quantities / types of liquid additive pumps
Eductors for introduction of dry additives into the blender tub
Emergency shutdown
Various chemical totes
Can operate as a standalone unit without the data van
