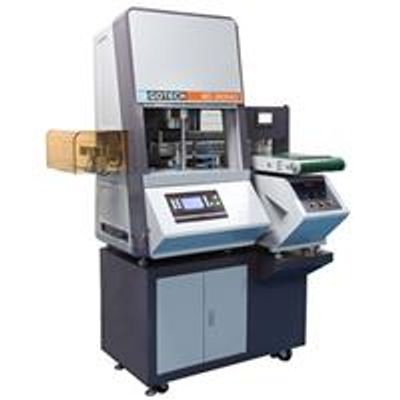

Goodtechwill - Model MD-3000AS -Auto Loading Moving Die Rheometer
MD-3000-AS, with rotorless sealed biconical die system, is a newly designed automatic moving die rheometer. The use of automation in MD-3000-AS helps the end-user to reduce more human involvements. Up to 130 specimens can be carried by the autoloader. Test specimens can be loaded, tested and unloaded in sequence automatically. As a flexible and powerful rheometer, MD-3000-AS offers optional variable temperature analysis and allows the end-user to adjust the oscillation amplitude between ±0.2° and ±3°. This rheometer is well suited for research and development.
Most popular related searches
- ASTM-D5289、GB/T 16584、ISO-6502
- Temp. Range: Ambient temp. to 230℃
- Die type: Sealed biconical type
- Temp. Control: PID & SSR
- Temp. Accuracy: ±0.3℃
- Torque unit: kg-cm, lb-in, N-m, dN-m
- Min. torque reading: 0.001 dN-m
- Oscillation frequency: 10~300 cpm
- Torque range: Elasticity S`: 1~200 lb-in
- Viscosity S": 0.3~200 lb-in
- Grade of temp. Sensor: Class A
- Heating up time : 30°C to 190°C < 5 min 30 sec
- 175°C to 190°C < 60 sec
- Min. temp. Reading : 0.1°C
- Time to stabilize the temp. : Takes about 50 sec to reach the set value after placing specimen and closing dies
- Oscillation amplitude : ±0.2° to ±3° (resolution 0.001°)
- Test mode : Cure
- Autoloader : Up to 130 specimens can be carried
- Pressure : 3.6 kg/㎡ (0.36 MPa) Prepared by user
- Dimension (W×D×H) : 141×108×128 cm
- Weight (approx.) : 320 kg
- Power : 1∮, AC220V±10%, 50/60Hz, 10A (or specify)
