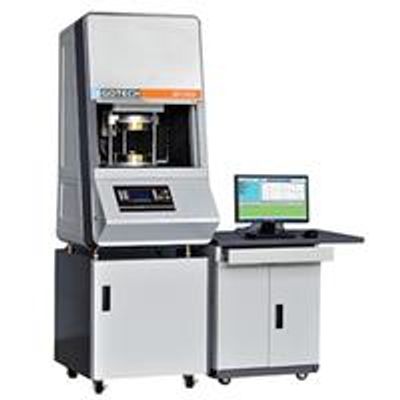

Goodtechwill - Model MV-3000VS -Mooney Viscometer

FromGoodtechwill Testing Machines (Qingdao) Co., Ltd

SHARE

MV-3000-VS is an upgraded model of traditional Mooney viscometer. Adopting a new microprocessor and LCD touch screen with built-in automatic balance and calibration device, it can automatically calibrate by pressing the button. With an accurate specimen temperature control system and high torque measuring precision, this machine is highly sensitive to changes in rubber materials, and has a better repeatability and reproducibility.

Most popular related searches

viscosity meter

digital temperature controller

torque monitoring

rubber processing

ASTM D1646、ISO 289、JSC K6300、GB/T 1232、GB/T 1233

Temp. Control: PC based software & PID; Temp. Range: Ambient temp. to 200°C
Grade of temp:Sensor Class A
Temp. Accuracy: ± 0.3 °C
Temp. Resolution: 0.1 °C
Heating up time: 30°C ~100°C < 5 min
Temp. recovery time Takes less than 60 sec to reach 100°C after placing specimen and closing die; Cooling control: The upper and lower mold cavity control the temperature independently, forced cooling
Rotor speed: 0.01 to 30 rpm
Mooney range: 1 to 250 mooney (You can use the computer to automatically switch or set it yourself); Sensor form: The torque sensor is directly applied on the central axis to avoid friction
Torque unit: kg-cm, lb-in, N-m, dN-m, mooney
Torque resolution: 0.001 mooney

Friction control: Automatic balance/friction deduction ensures that there is no sealing ring effect

Function：Mooney Viscosity 、Mooney Scorch、Stress Relaxation
Test time range：Unlimited
Rotor size: L(large) and S(small) type

Mechanical design: The upper mold cavity and cylinder device are installed with mechanical parts, and the parts are connected with the machine to ensure the rigidity of the parts.
Security control: Ensure safety through emergency switch design, and can be detected if any items are pressed when the machine is closed
Rotor height control: Automatic detection control
Signal: The variable light is designed to determine the test status

Pneumatic pressure: 3.6 kg/㎡(0.36 MPa) prepared by customer
Dimension (W×D×H): 68 × 80 × 130 cm
Weight : 220 kg
Power: 1∮, AC 220V±10%, 50/60Hz, 10A (or specify)
