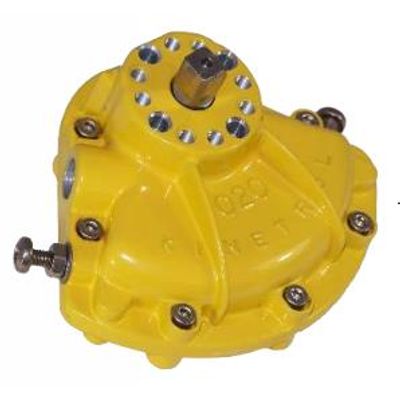

Gosco - Model 02 -Rotary Actuators
FromGosco Valves
Options: Fail safe spring return units • clockwise or counter clockwise see pages 27/28. 180" model see pages 51`52. Female drive and mounting details to DIN 3337 and ISO 5211. Code identification see page 30. Torque outputs see pages 6-8. See pages 57-59 for English dimensions and dimensions of spring options. ISO adaptor see page 26.
Most popular related searches
Output Torque
106 Ibf ins/12.1 Nm at 100 psi/7 bar
Angle of Travel (adjustable)
80" -100° (restricted travel versions available)
Displaced Volume
1.89inV31 cm1
Finish
Epoxy stove enamel
Weight
0.97 lb/0.44 kg (excluding coupling)
For further information see General Specification on page 5.
