GPP - Sorting Machines

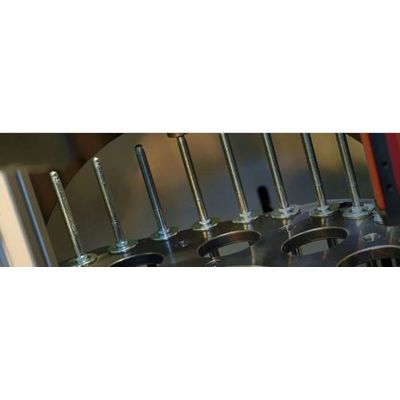

Sorting machines profiSORT are typically used for the control and sorting of rotationally symmetrical, shaft-heavy precision parts, such as screws, bolts, rivets.

• Machine classes according to parts spectrum:
  • Shank diameter 3 … 6 mm, length & lt; 90mm
  • Shank diameter 6 … 16 mm, length & lt; 180mm
  • Special sizes for longer parts up to 300mm
  • Special sizes for shaft diameter less than 3mm
• Available test stations:
  • Shaft Camera Systems (Side Camera)
  • Head Camera Systems (Top Camera)
  • Thread measurement according to DIN
  • concentricity Control
  • straightness
  • 360 ° surface inspection, also for thread
  • Eddy current inspection
  • eddy current structure test
  • mechanical intervention check
• Additional features:
  • Continuous or clocked operation
  • High test speed – depending on geometry and configuration
  • Monitoring of part ejection
  • Control of customer-specific packaging equipment

preciSORT-GT GPP sorting machines are precision engine selection machines wit glass plate. They serve the quality inspection of metallic and non-metallic small parts.

• Available test stations:
  • Shaft Camera Systems (Side Camera)
  • Head Camera Systems (Top Camera)
  • Thread measurement according to DIN
  • 360 ° surface inspection, also for interior and exterior surfaces
  • eddy current structure test

• Additional features:
  • high test speed – depending on geometry and configuration
  • Monitoring of part ejection
  • Control of customer-specific packaging equipment

GPP sorting machines with glass angle are mostly used for precision parts without a head.

• • classification:
    • Simple machines:
      • 2 shaft camera systems (side camera)
      • for quick check of diameter and length
    • complex machines:
      • 2 shaft camera systems (side camera)
      • Head camera system (top camera) for roundness
      • Under head testing
      • Center axis offset for bolts between shaft and head
      • eddy current structure test



  • Additional features:
    • high test speed – depending on geometry and configuration
    • Monitoring of part ejection
    • Control of customer-specific packaging equipment

• • Special testing and sorting machines are based on concrete testing requirements from the quality assurance process of our customers.

• • These may be special test procedures, separate test areas on the test parts, special test requirements or accuracies on different surfaces requiring a special test or a combination of test sensors.

These systems are specified with the customer and configured and implemented by GPP. Especially in such special testing and sorting machines, the different know-how and the experience of the company comes into play.

Examples are:

• Pick & Place – Supply and removal of parts for gentle transport
• High accuracy measurements
• Complex Testing, Focus Stacking, Artificial Intelligence
• Crack and structural test for round welded nuts
