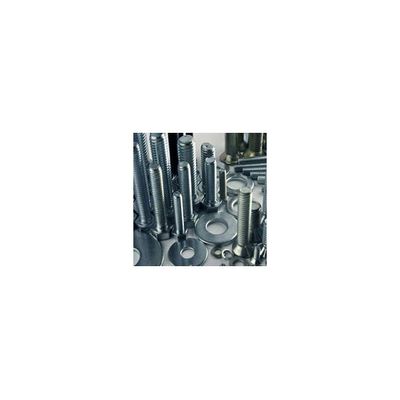

Manifold - Grade 317 Stainless Steel Fasteners
Supplies A Full Range Of Stainless Steel 317 Nuts, SS 317 Bolts, 317 SS Stud Bolt At Factory Price In IndiaCarries A Complete Line Of Stainless Steel 317 Bolts, SS 317 Socket Cap Screw, SS 317 Screws In Mumbai, India. Grade 317 Stainless Steel Fasteners Are A Modified Version Of 316 Stainless Steel. As Compared To 316 Grade Stainless Steel, These Stainless Steel 317 Nuts Have A Higher Tensile Strength And An Improved Corrosion Resistance.Besides Its Excellent Corrosion Resistance Properties, The SS 317 Socket Cap Screw Offers A Higher Creep Strength As Well As A High Stress-To-Rupture Strength Even At Elevated Temperatures. Stainless Steel 317 Bolts Are Also Able To Maintain Clean Surfaces.
While the grade 317 SS Stud Bolt is tougher than 304 grade stainless steel, it is recommended to use chip breakers while machining them. The hardenability of 317 grade stainless steel will reduce if constant feeds and low speeds are used.The SS 317 Screws have excellent mechanical properties, similar to grade 316 stainless steel. The tensile strength of 317 grade stainless steel is 515 Mpa, its yield strength is about 205 Mpa, elongation percentage at 2” is around 35% while its maximum brinelled hardness value stands at 217.
Although oxyacetylene welding method is not preferred for 317 grade alloy, it can be welded using fusion and resistance methods. For instance, using the AWS E/ER317 or 317L filler metal technique can yield good result.The 317 stainless steel can be both hot worked as well as cold worked. For cold working 317 grade, all conventional techniques used on standard stainless steel can be used. The temperature to carry out hot working the alloy of 317 grade stainless steel is between the range of 1149°C - 1260°C. temperatures below 927°C must not be used for hot working this grade.
Since heat does not affect this grade, the Stainless Steel 317 Bolts are hardened by cold working. Cold working operations like Stamping, drawing, shearing, and heading can be done successfully on the SS 317 Bolts. Post-work annealing can be done to Stainless Steel 317 Bolts in both cold working in order to reduce internal stress and hot working to retain the corrosion resistance property.
- Specifications of 317 Stainless Steel Fasteners: ASTM A193 / A193, ASME SA193 / SA194
- Standard of 317 Stainless Steel Fasteners: DIN, ASTM, BS and all International Standards
- Length of 317 Stainless Steel Fasteners: 3 mm to 200 mm
- 317 Stainless Steel Nuts Size: M3 - M56 | 3/6" to 2" | Custom Sizes
- 317 Stainless Steel Bolt / Screw Size: M3 - M56 | 3/6" to 2" | Custom Sizes
- 317 Stainless Steel Machine Screws Size: M1.6 - M12
- 317 Stainless Steel Washers Size: M3 - M56 | 3/6" to 2" | Custom Sizes
- Stainless Steel Grades: SS 317
- 317 Stainless Steel Fasteners Type: Socket Head Cap Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Allen Cap screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw
