organic fertilizer - Model Roll squeezing -Granulators

The working principle of the roller granulator is relatively simple and efficient. Firstly, the mixed powder with a moisture content of no more than 15% enters the feeding system from the hopper, and the appropriate material flow rate is obtained by adjusting the speed of the continuously variable speed motor. Then, the material enters the mixing system and is mixed with steam for conditioning. At the same time, molasses or oil can be added to enhance the adhesion of the material (but the amount of oil added is generally not more than 3%, otherwise it will affect the forming). The temperature of the quenched and tempered material can reach 64-85 ℃, and the humidity can reach 14-16%. Next, the material enters the pressing chamber through the inclined groove and forms spherical or flattened particles under the opposing rotation and compression of the double rollers. Finally, the particles are sieved and separated to obtain products with different particle sizes.

characteristic:
1. Efficient and energy-saving: The roller extrusion granulator adopts a non drying ambient temperature process, with one-time molding, high production efficiency and low energy consumption.
2. Strong adaptability: The raw materials have a wide adaptability and can be used for granulation of various raw materials such as fertilizers, pharmaceuticals, chemicals, and feed.
3. High product quality: The product has a high granulation rate, high particle strength, and a significant increase in bulk density, which meets the technical requirements of compound fertilizers.
4. Stable operation: The equipment runs stably and reliably, with great flexibility in operation and a wide range of adaptability. The squeezing force can be adjusted by hydraulic pressure.
5. Environmentally friendly and pollution-free: No discharge of three wastes, meeting environmental protection requirements.

Basic components:

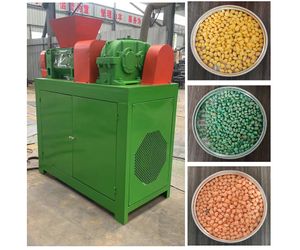

The roller granulator is mainly composed of a feeding system, a stirring system, a granulation system, a transmission system, and a lubrication system. These systems work together to ensure that materials can smoothly enter the machine, and after mixing and tempering, particles are formed through the squeezing effect of double rollers.

Zhengzhou Fude Machinery integrates research and development, manufacturing, and sales. We have a professional technical team that deeply understands customer needs, recommends and answers equipment questions for customers, teaches operation techniques, and produces disc granulators, roller extrusion granulators, vertical crushers, groove turners, track turners, disc turners, organic fertilizer production lines, etc. If you want to learn about the processing industry, please consult us.
