Forrec - Model FMS Series -Granulators

• Soundproof loading hopper with protective measures in order to avoid the expulsion of material externally, suitable for loading using a conveyor belt

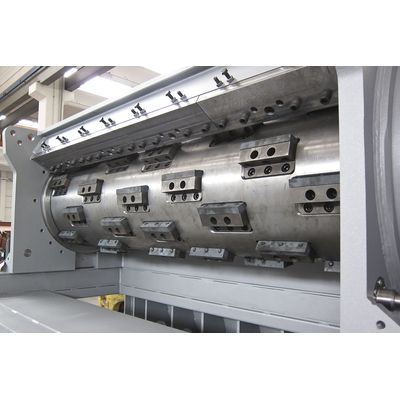

• Cutting chamber in top quality large steel sheeting assembled with screws and pins in order to render worn parts easily replaceable
• Double row spherical roller bearings housed in supports connected for the entire circumference to the grinding chamber with a relief and equipped with grease nipples
• Configuration of the scissor cut obtained with the inclination of the rotating blades in respect to the counter blades
• Tempered chrome k110 blades and counter blades (58/59 HRC), rectified and micro metrically adjustable
• Blades and counter blades adjustable on the bench with a template in order to always maintain optimal cutting conditions and distance between the blades and between the rotor blades and the grille, as well as a reduction in replacement times
• Reversible sorting grille with a large exhaust area mounted on a cradle grille holder which renders cleaning and replacement easy
• Solid flywheel fastened to the shaft rotor with expanding shrink disks which guarantee a reliable fastening over time

Production:
1000 - 2500 kg/h

Rotor diameter:
800 mm

Engine:
90KW / 110 kW / 200 kW

Rotor:
full

Fan engine:
15 kW

Rotor length:
1000 – 1500 – 2000 mm

Blades:
interchangeable plates and configurable in size

• Large and voluminous sized waste from the injection moulding process
• Large and voluminous sized waste from the blow moulding process
• Extrusion parts (pipes, profiles, plates, drains)
• Film in bulk or on reels
• Thermoforming reels
• Blocks
• Refrigerators
• Tyres
• Electrical Wires
