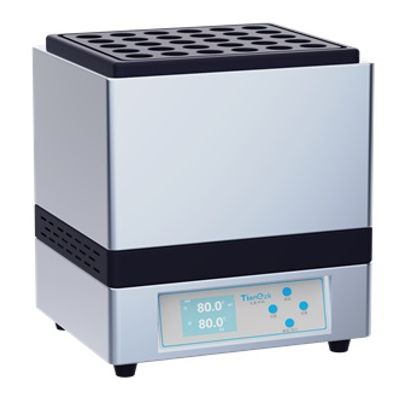

Tianyi Zhongke - Model GSD -Graphite Acid Removal Device

• Product Model: GSD Series
• Manufacturer type: Production company
• Updated: March 20, 2025
• Number of visits: 3932

• Brand: Tianezk
• Heating principle: heating element
• Heating temperature: 250℃
• Price range: 10,000-50,000
• Origin Category: Domestic
• Reagent channel: twenty four
• Temperature control accuracy: ±0.1℃
• Digits of Digestion: 24-45 digits
• Instrument Type: Electrothermal digestion
• Application Areas: Environmental protection, food/agricultural products, geology and mining, pharmaceuticals/biopharmaceuticals, and general industries.
• Product Name: Graphite acid removal device
• Product Model: GSD Series
• Acid-removing pores: 24/30/40/45 holes

Tianyi Zhongke-GSD graphite acid remover is used for acid removal after microwave digestion and is often used in conjunction with a microwave digester.

• Operating voltage: AC 220V±10% 50Hz
• Power: 2400W
• Suitable working temperature: 10-40℃.
• Suitable humidity for the workplace: 20%-80%.
• Temperature control range: room temperature - 260℃.
• Temperature difference between holes: ≦±1℃@100℃.
• Number of holes: 24, 30, 40, 45 (optional).

• Graphite is used as a heating material, and the heating surface is coated with Teflon to resist acid and alkali corrosion.
• It has a heating instrument malfunction and overheating alarm device, and automatically alarms when the temperature exceeds the limit.
• Integrated main unit, no external cable wiring, whole-circuit heating, temperature continuously adjustable.
• Equipped with heating abnormality and overheat alarm devices, and automatic alarm for exceeding temperature limits.
• Button control: Time and temperature can be set. The timer starts when the set temperature is reached and automatically stops heating when the time is up.
• Temperature control adopts PID control technology, capacitive touch screen color display, and can control temperature in segments with gradient.
• 30-well and 45-well options with a diameter of 29mm x 165mm, and 24-well and 40-well options with a diameter of 35mm x 165mm are available. (Please confirm that the aperture of the digestion vessel matches that of the acid remover when selecting.)
