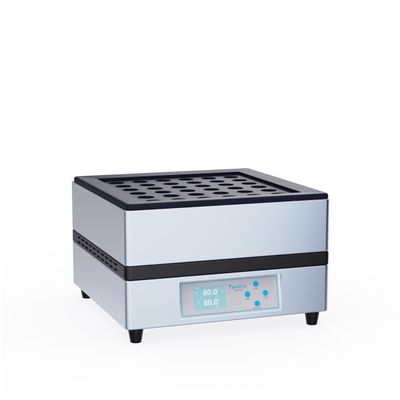

Tianyi Zhongke - Model GRD-36 -Graphite Digestion Instrument
Tianyi Zhongke GRD-36 graphite digester is a classic wet digestion upgraded equipment, with the characteristics of convenient operation and high cost performance, suitable for sample heating treatment in various industries. It adopts PID temperature control technology and surround heating design, equipped with high-purity graphite heating materials and Teflon coating to ensure corrosion resistance and efficient heating. At the same time, the equipment has temperature abnormality alarm function and multi-layer insulation design to ensure safety and energy saving. It supports 36 samples to be processed simultaneously, with high temperature control accuracy, and is widely used in food, environmental protection, chemical industry and other fields.
- Brand: Tianyi Zhongke
- Origin: Sichuan
- Model: GRD-36
- Quote: ¥10,000-30,000
- Product Name: Batch processing capacity
- Product Model: GRD-36
- Acid-removing pores: 36 holes
As a classic wet digestion upgrade equipment, Tianyi Zhongke graphite digester has the characteristics of simple and convenient operation and high cost performance. It is an ideal supporting pre-treatment for spectral equipment.
- Instrument Type: Graphite digestion
- Degree of automation: Semi-automatic
- Digestion digits: 36-bit
- Heating temperature: 250℃-450℃
- Temperature control accuracy: ℃
- Heating principle: Graphite heating tank
- Reagent channel: 36
It is suitable for heating treatment of samples in industries such as food, medicine, environmental protection, chemical industry, geology, metallurgy, materials, universities, scientific research institutes, etc.
- Adopt PID microchip temperature control technology, LED digital display temperature control , high temperature control accuracy.
- Integrated control, surround heating, continuously adjustable temperature, and processing of multiple samples in the same batch.
- High-purity graphite is used as the heating material, and the heating surface is sprayed with Teflon coating, which is resistant to acid and alkali corrosion.
- It has heating device abnormality and overheating alarm device, and automatic over-temperature alarm.
- Double-layer insulation of air insulation layer and fiber insulation layer, and equipped with duct insulation, with good insulation effect.
- Power supply: AC 220V±10% 50Hz.
- Temperature control range: room temperature ~ 250? (high temperature type 450?).
- Temperature difference between holes: ?±1?@100?.
- Standard hole configuration: ?31mm or 39.5 mm optional (other sizes can be customized).
- Number of holes: 36 holes.
- Power: 3600W.
- Digestion tank capacity: 50ml or 100ml optional.
- Digestion material: PTFE, high borosilicate glass, quartz optional. (If you need to use hydrofluoric acid, please choose a PTFE digestion tank)
- Overall dimensions: 355X355X265mm.
- Net weight is about 20KG.
