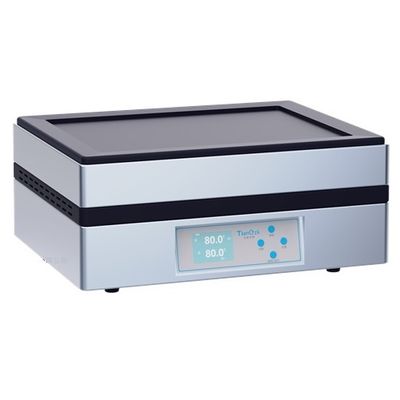

Tianyi Zhongke - Model EHP-4P -Graphite Heating Plate

• Product Model: EHP-4P
• Manufacturer type: Production company
• Updated: March 20, 2025
• Number of visits: 4201

• Brand: Tianezk
• Heating zone size: 410*310mm
• Temperature uniformity: ±1℃
• Heating power: 2.5kW
• Origin Category: Domestic
• Display Mode: LCD display
• Plate size: 400X300mm
• Maximum heating temperature: 450℃
• Price range: Negotiable
• Application Areas: Environmental protection, food/agricultural products, chemical industry, agriculture, forestry, animal husbandry and fishery, geology and mining

• Product Name: Graphite heating plate
• Product Model: EHP-4P
• Panel size: 400X300mm

Tianyi Zhongke-EHP-4P graphite heating plate is suitable for heating treatment of samples in industries such as food, medicine, environmental protection, chemical industry, geology, metallurgy, materials, universities, and scientific research institutes.

• It adopts PID microchip control temperature control technology and LED digital display temperature control, resulting in high temperature control accuracy.
• Integrated control, continuously adjustable temperature, and processing of multiple samples in the same batch.
• High-purity graphite is used as the heating material, and the heating surface is coated with Teflon to resist acid and alkali corrosion.
• Equipped with a heater malfunction and overheating alarm device, and automatic alarm for exceeding the temperature limit.
• Double-layer insulation with air insulation layer and fiber insulation layer, and equipped with air duct insulation, resulting in good insulation effect.

• Power supply: AC 220V±10% 50Hz.
• Temperature control range: room temperature ~ 250℃ (high temperature type 450℃).
• Usable area: 400X300mm.
• Power: 2400W.

• External dimensions: 435X355X160mm.
• Net weight approximately 20KG.
