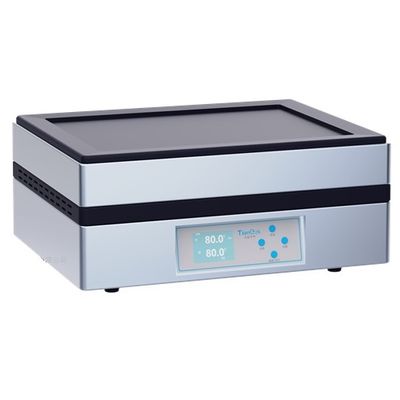

Tianyi Zhongke - Model EHP-6P -Graphite Heating Plate
The Tianyi Zhongke-EHP-6P graphite heating plate, as a classic wet digestion device, features simple and convenient operation, high cost-effectiveness, and versatility in application scenarios, making it an ideal heating device for laboratories.
Most popular related searches
digital temperature controller
wet digester
laboratory productivity
scientific research
laboratory product
air duct
environmental protection system
laboratory device
digestate
digester
The Tianyi Zhongke-EHP-6P graphite electric heating plate is a classic wet digestion device. It features simple and convenient operation, high cost performance, and versatile application scenarios, making it an ideal heating device for laboratories.
- Product Model: EHP-6P
- Manufacturer type: Production company
- Updated: March 20, 2025
- Number of visits: 3680
- Brand: Tianezk
- Heating zone size: 610*410mm
- Temperature uniformity: 100℃/±1℃
- Heating power: 4kW
- Origin Category: Domestic
- Display Mode: LCD display
- Plate size: 600X400mm
- Maximum heating temperature: 450℃
- Price range: Negotiable
- Application Areas: Healthcare, Environmental Protection, Food/Agricultural Products, Agriculture, Forestry, Animal Husbandry and Fishery, Geology and Mineral Resources
- Product Name: Tianyi Zhongke-EHP-6P Graphite Heating Plate
- Product Model: EHP-6P
- Panel size: 600X400mm
Tianyi Zhongke-EHP-6P graphite heating plate is suitable for heating treatment of samples in industries such as food, medicine, environmental protection, chemical industry, geology, metallurgy, materials, universities, and scientific research institutes.
- It adopts PID microchip control temperature control technology and LED digital display temperature control, which has high temperature control accuracy.
- Integrated control, continuously adjustable temperature, and processing of multiple samples in the same batch.
- High-purity graphite is used as the heating material, and the heating surface is coated with Teflon to resist acid and alkali corrosion.
- Equipped with a heater malfunction and overheating alarm device, and automatic alarm for exceeding the temperature limit.
- Double-layer insulation with air insulation layer and fiber insulation layer, and equipped with air duct insulation, resulting in good insulation effect.
- Power supply: AC 220V±10% 50Hz.
- Temperature control range: room temperature ~ 250℃ (high temperature type 450℃).
- Usable area: 600X400mm.
- Power: 3600W.
- External dimensions: 635X455X160mm.
- Net weight approximately 30KG.
