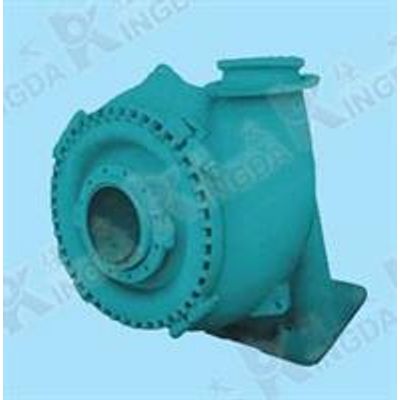

Kingda - Model KSG -Gravel Slurry Pump
The product is a cantilever and centrifugal pump. Single pump casing structure with cassette connection, has good wear resistance, corrosion resistance and high reliability. The product is reasonable in structure, reliable in operation and long in service life. It is especially suitable for continuous transportation of strong abrasive materials due to too large particles to be conveyed by general slurry pumps.
Most popular related searches
slurry pump
wear resistance
centrifugal pumping
centrifugal pump
cantilever centrifugal pump
pump seal
river dredging
dredge
centrifuge
dredging
- Long life of L vulnerable parts
- Has high efficiency and low energy consumption
- Easy to maintain
- Running cost is low
- Has high reliability
Kingda advantage
Kingda Pump established in1949, is the largest slurry factory in China. Has been producing slurry pump nearly 70 years. Kingda has its own R&D center and the unique Slurry Pump Institute in China opened to all kinds of industries, has CFD, CAE and other advanced design methods.
- It is mainly used in dredger, dredging river channel, mining and metal smelting, blasting slag transportation, etc.
- Uses a single pump shell structure to connect the cassette, the flow passage is spacious, lined with hard alloy has good wear resistance, corrosion resistance and high reliability.
- Cylinder structure bearing assembly is designed with high capacity bearings. Grease and oil lubrication are adopted for bearings to adapt to different working conditions.
- Can adjust the clearance between the impeller and the guard plate to ensure the efficient operation of the pump.
- Shaft seal adopts packing seal, impeller sealing and container type mechanical seal, which adapts to different working conditions.
- Can choose direct drive- belt drive, hydraulic coupling drive, reducer drive.
- The outlet direction of the L pump can be rotated at any angle so as to meet the different installation conditions
- Size: 100-800mm
- Flow rate: 80-10000m3/h
- Head: 5-90m
