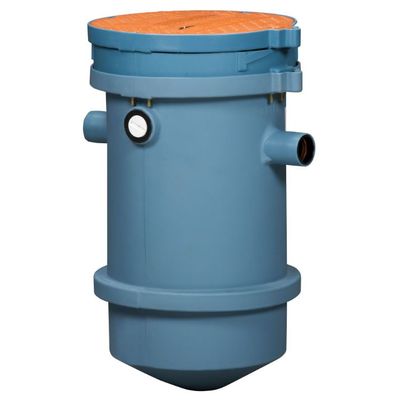

Thermaco Trapzilla - Model TZ-160-ECA -Grease Interceptor
The TZ-160-ECA In-Ground Trapzilla Grease Interceptor is specifically designed for optimal grease separation in commercial kitchens and food processing facilities. It manages a maximum inlet flow rate of 35 GPM (2.21 l/s) and features a grease retention capacity of 167 pounds (75 kg). Constructed from rotationally molded polyethylene, this interceptor provides enhanced durability over traditional steel or concrete models. The unit includes a 29-inch long two-piece extension collar, a 22-inch solid top cover for easy maintenance, and a range of technical features like an integral non-floatation anchor ring, horizontal baffle, laminar inlet flow diverter, and separate storage compartments for grease and solids. It also incorporates a gas trap and a fully removable self-positioning keyed cover with sealed thread fasteners. The design ensures a flat grease separation efficiency curve, making it a robust and long-lasting solution for grease management.
QUALIFIES FOR FREE SHIPPING VIA UPS GROUND IN CONTIGUOUS US ONLY
The TZ-160-ECA In-Ground Trapzilla Grease Interceptor is rated for 35 GPM (2.21 l/s) and holds 167 pounds (21 gallons) of grease in a compact footprint. Perfect for replacing failing steel or concrete interceptors, the TZ-160-ECA is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The In-Ground models come with a 29" long Two-Piece Extension Collar and a 22" Solid Top Cover that can be removed easily to clean out retained grease.
Maximum Inlet Flow Rate: 35 GPM (2.21 l/s)
Grease Retention Capacity: 167 Pounds (75+ kg)
Material: Rotationally Molded Polyethylene
Product Weight: 60 Pounds (28 Kg)
Thermaco Trapzilla Model No. TZ-160-ECA, linear low-density rotationally molded polyethylene grease and oil separator(s) for in-ground installation, shall be ASME A112.14.3 Rated at 35 gallons per minute (2.21 l/s) peak flow, 167 pounds (75 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, removable lid for full access by grease pump truck for grease removal and removal of solids, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fas- teners. Included extension collar manufactured out of linear low-density rotationally molded polyethylene with two piece construction for field adjustable height. The Grease Retention Capacity shall be not less than four pounds (4 lbs.) per one gallon (1 gal.) average flow rate.
Unit may also be listed as TZ160 or TZ160ECA
