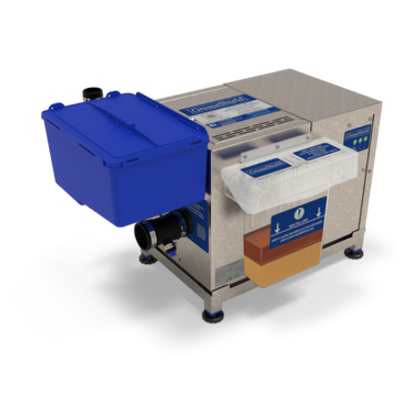

EPAS - Model GreaseShield 1000-PF -Grease Recovery Unit

Applications: • Prep Sinks • Small Pot Wash Sinks

Flow Rates & Certification:

• Pro-Active Flow Rate – 1 L/sec
• ASM E Certification
• CSA Certification
• EN 1825 Certification

Standard Features & Functions
• Automatic FOG & solids removal
• Self cleaning
• Magnetic baffle for bioremediation
• PLC controlled
• Non restricted Vortex Flow Control device
• Reverse flow configuration
• Space Saver Running Trap & Sampling Point
• Globally certified award winning technology

Plumbing Connections

• Inlet: 1″½/40mm
• Outlet: 2″/50mm
• Hot Water Solenoid: ¾”/22m

Electrical Ratings
UK,EU,AU,NZ

• Voltage: 230v
• Frequency: 50Hz
• Current: 0.49A

USA

• Voltage: 120v
• Frequency: 60Hz
• Current: 0.98A

Standard Operational Times

• Days of Operation: 7 Days a Week
• Hours of Operation: 07:00-02:30

Note: Operational times should be adjusted to suit the needs of the kitchen

Average Power Consumption
15.1W Per Hour

• Automatic Self Cleaning
• Automatic grease removal & solids filtration
• Automatic Anti-Flood Feature
• Non restricted flow control device
• Fully programable operating times, to suit your kitchen
• Unique Reverse Flow Figuration for increase FOG separation
• In Situ Bioremediation
• Lowest Power Consumption in its Class
• Recycles waste thermal energy
• User Friendly
• Globally Certified
