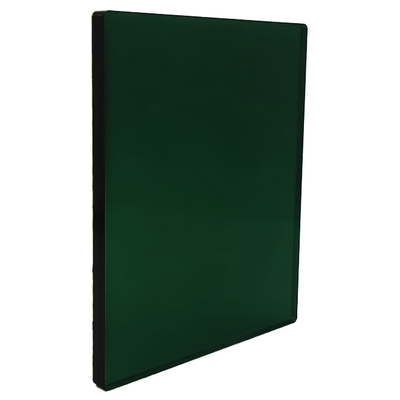

Phillips - Model ALS-690 IR-0.150 -Green Laser Protective Acrylic Sheet

Laser windows can be custom cut, molded, and drilled to your CAD specifications for use in enclosures or machine windows. This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

Filter specifications can be permanently engraved on the window. Custom sizes and shapes are available. This laser safety viewing window meets and/or exceeds US ANSI Z136 standards for use with lasers. Plus, this laser protective acrylic sheet has a 0.150″ Thickness

Maximum Sheet Size 24″ X 36″

• OD 6+ @180 – 420 nm
• OD 3+ @670 – 680 nm
• OD 4+ @680 – 1080 nm
• OD 6+ @694 – 1065 nm
• OD 3+ @2750 – 3000 nm

VLT = 22%

The requested dimensions will be held to +/- 1/16″ tolerance. If you require a more precise tolerance, do not order on this site. Send your request to sales-team@phillips-safety.com for a quote.
