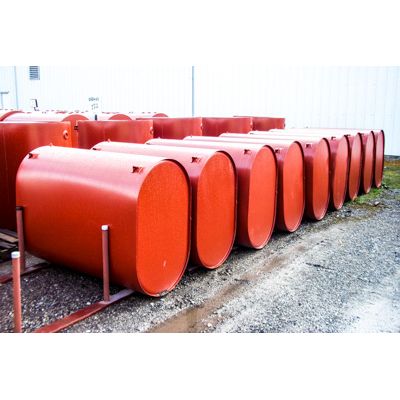

Greer - Model Non-UL -Alaska Obround Tanks
Available from our Fairbanks and Anchorage Facilities. No Spider Obrounds or Obround tank stands are available in Alaska.
Most popular related searches
- UL standards but not listed
- 2 ea 2″ and 1ea 1 1/2″ threaded openings on the top of the tank
- 1 ea 3/4” threaded opening on the bottom of the side of the tank
|
Gallons
|
GA | DIA | Length | Weight |
| 110 | 14 | 27" x 44" | 24" | 115# |
| 165 | 14 | 27" x 44" | 36" | 145# |
| 220 | 14 | 27" x 44" | 48" | 178# |
| 275 | 14 | 27" x 44" | 60" | 205#
|
Obround Steel Tanks kit includes basic accessories for home heating tank installation.
Obround Accessories Kits Include:
- 4 ea.—1-1/4” x 6” Galv. Pipe Nipple (Legs) – Part # PFN1146G
- 4 ea.—1-1/4” Galv. Floor Flange—Part # FF125G
- Morrison Fig: 155 2” Double Outlet Tee Vent—Part # VCT2
- 2” x 6” Galv. Riser Pipe for Vent—Part # PFN26G
- Krueger Sentry H-2-44 Liquid Level Gauge—Part # STGH244
- Duplex Bushing w/Brass 2” x 3/8 x3/8—Part # PFT238BG
- Morrison Fig: 179 2” Hinged Aluminum Lockable Fill Cap—Part # FC2AM
Tank stands may also be purchased as an optional item. Greer stocks 24” and 48” tank stands but can fabricate any size needed.
