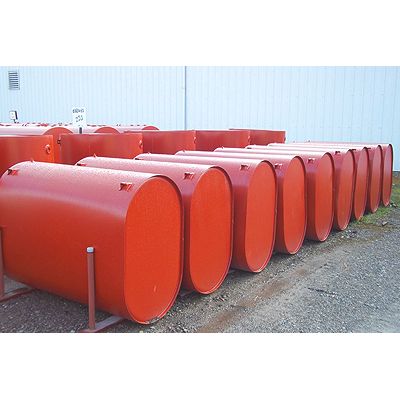

Greer - Model UL-80 -Washington Obround Tanks
Available from our Lakewood Facility.
Most popular related searches
- 3/4” threaded opening on the bottom of UL tanks.
- 1/2” threaded opening on the bottom of Non UL tanks.
- 3 or 4 – 2” threaded openings on top.
- Exterior of each tank is chemically cleaned and coated with primer; no interior coating.
- Heavy-duty 1-1/4” pipe threaded leg attachments.
- Optional leg kit and accessory kits are available for additional charge
- We stock all necessary equipment needed for installation
|
Gallons
|
GA | DIA | Length | Weight |
| 110 | 12 | 27" x 44" | 24" | 160# |
| 165 | 12 | 27" x 44" | 36" | 205# |
| 220 | 12 | 27" x 44" | 48" | 250# |
| 275 | 12 | 27" x 44" | 60" | 285# |
| 275 w/handle | 12 | 27" x 44" | 60" | 287#
|
Obround Steel Tanks kit includes basic accessories for home heating tank installation.
Obround Accessories Kits Include:
- 4 ea.—1-1/4” x 6” Galv. Pipe Nipple (Legs) – Part # PFN1146G
- 4 ea.—1-1/4” Galv. Floor Flange—Part # FF125G
- Morrison Fig: 155 2” Double Outlet Tee Vent—Part # VCT2
- 2” x 6” Galv. Riser Pipe for Vent—Part # PFN26G
- Krueger Sentry H-2-44 Liquid Level Gauge—Part # STGH244
- Duplex Bushing w/Brass 2” x 3/8 x3/8—Part # PFT238BG
- Morrison Fig: 179 2” Hinged Aluminum Lockable Fill Cap—Part # FC2AM
Tank stands may also be purchased as an optional item. Greer stocks 24” and 48” tank stands but can fabricate any size needed.
